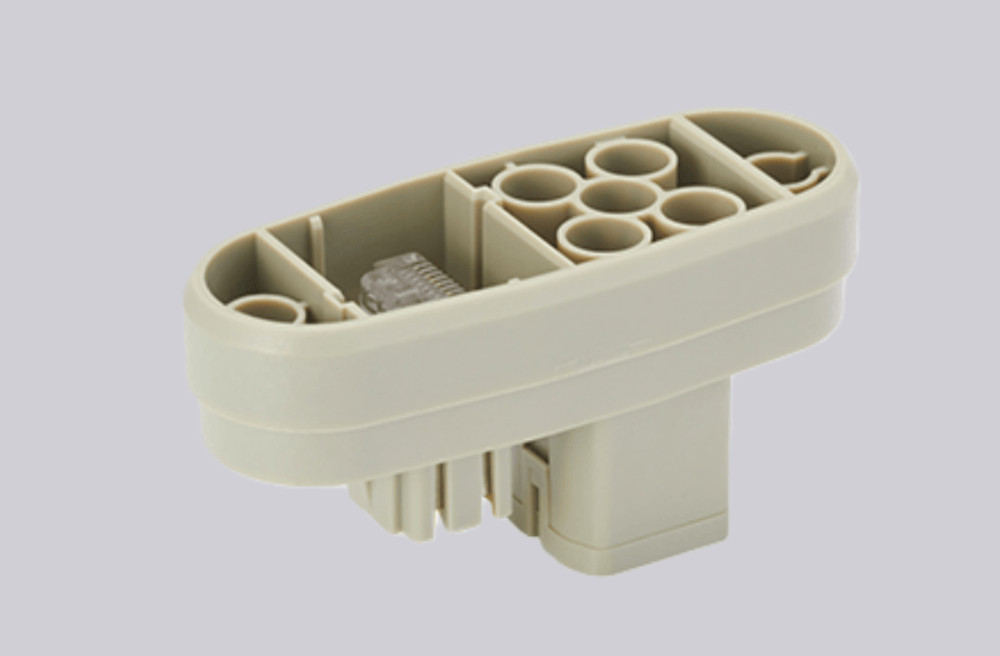

The HY-004/RJ45-MC is a high-performance connector insert designed for reliable signal transmission in industrial communication environments. It features high-quality contacts with precision surface treatment, ensuring low contact resistance, excellent signal integrity, and stable data transmission performance.
Using a secure connection design, the HY-004/RJ45-MC provides strong mechanical retention and effective vibration resistance for long-term operation in harsh industrial conditions. Its compact structure combined with a standardized RJ45 interface allows easy installation and efficient use of space while maintaining consistent and dependable connectivity.
Designed in compliance with strict industrial standards, the HY-004/RJ45-MC offers outstanding durability, wear resistance, and reliable performance. It is well suited for industrial Ethernet, automation networks, and communication systems where stable data transmission and high connection reliability are required.
Technical Data
| Series | HY insert series |
| Male/female | Male |
| Connection type | Crimp connection |
| Number of connector contacts | 4 + RJ45 |
| Grounding contacts | Yes |
| Rated current | 16A / 1A |
| Rated voltage | 240V / 50V |
| Rated pulse voltage | 4KV / 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+85℃ |
| Mating cycles | ≥1000 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated / Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.37–4 mm² |
| Wire gauge (AWG) | 22–12 AWG |
| Stripping length | 7.5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
