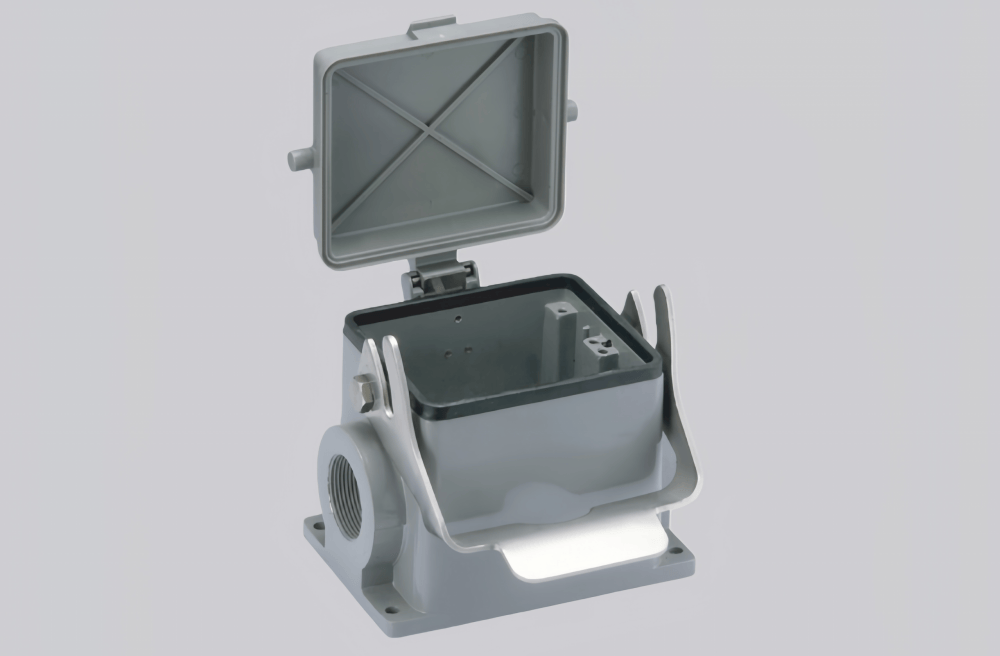

The H32B-SF-1L/S-MCV-2PG36 is a robust classic regular housing engineered for demanding industrial and outdoor applications. Featuring a sealed lower housing with a sturdy metal cap, it provides reliable protection against dust, moisture, and mechanical impacts, ensuring the safety and longevity of internal components. Its bottom outlet with dual PG36 threads allows flexible and convenient cable management, while the dual lock system guarantees secure and stable assembly during operation.
Manufactured from high-quality die-cast aluminum, the housing delivers excellent strength and corrosion resistance. The surface is treated with a powder coating in RAL 7037 (field gray), offering a professional and durable finish. Its metal elastic interlocking connection enhances structural stability, while stainless steel and TPR components, together with NBR seals, ensure outstanding flame-retardant performance in accordance with UL94 standards.
Ideal for industrial automation, control panels, and harsh outdoor environments, the H32B-SF-1L/S-MCV-2PG36 combines durability, practicality, and safety to protect sensitive equipment effectively.
Technical Data
| Series | Classic regular housing |
| Specifications | 32B |
| Housing type | Sealed lower housing |
| Housing Overview | Metal cap |
| Outgoing method | Side outlet |
| Locking type | Single lock |
| Thread | PG36 |
| Housing material | Die casting aluminum |
| Housing color | RAL 7037 (field gray) |
| Surface treatment | Powder coating |
| Interlocking method | Metal elastic connection |
| Material | Stainless steel |
| Seals | NBR |
| Flame retardant rating as per UL94 | V0 |
| Working temperature | -40℃ … +125℃ |
| Protection rating | IP65 |
