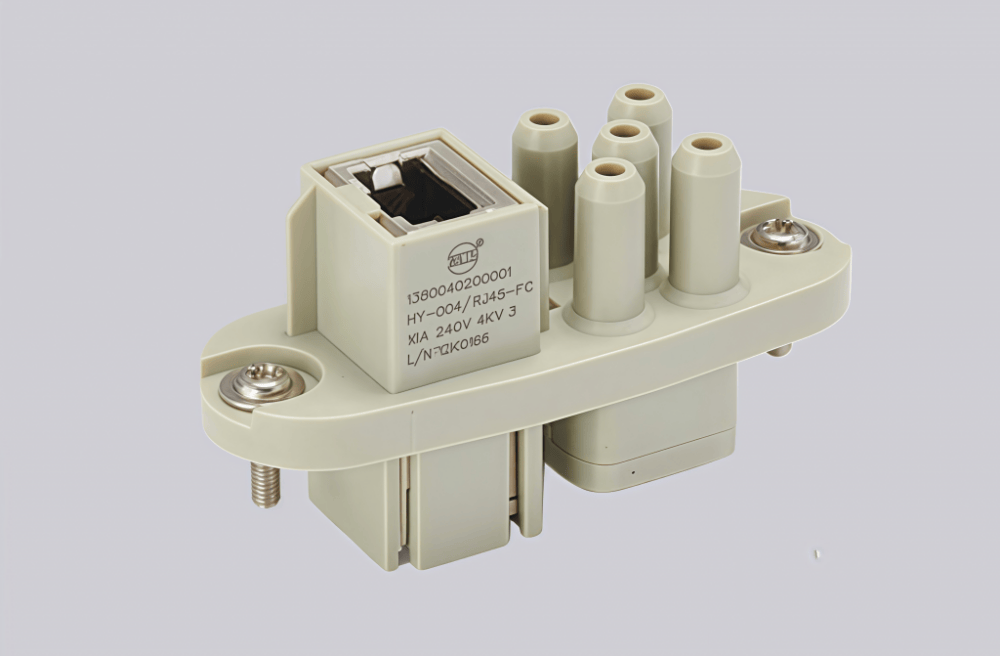

The HY-004/RJ45-FC is a high-performance connector insert designed for reliable signal transmission in industrial communication environments. It is manufactured with high-quality contacts and precision surface treatment, ensuring stable electrical performance, low contact resistance, and excellent signal integrity for data transmission.
Featuring a secure connection design, the HY-004/RJ45-FC provides strong mechanical retention and effective resistance to vibration, making it suitable for long-term operation in harsh industrial conditions. Its compact structure and standardized RJ45 interface allow easy installation and efficient space utilization while maintaining consistent and dependable connectivity.
Engineered to meet strict industrial standards, the HY-004/RJ45-FC offers excellent durability, wear resistance, and reliable performance in demanding environments. It is an ideal solution for industrial Ethernet, automation networks, and communication systems where stable data transmission and high connection reliability are essential.

Technical Data
| Series | HY insert series |
| Male/female | Female |
| Connection type | Crimp connection |
| Number of connector contacts | 4 + RJ45 |
| Grounding contacts | Yes |
| Rated current | 16A / 1A |
| Rated voltage | 240V / 50V |
| Rated pulse voltage | 4KV / 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+85℃ |
| Mating cycles | ≥1000 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated / Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.37–4 mm² |
| Wire gauge (AWG) | 22–12 AWG |
| Stripping length | 7.5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
