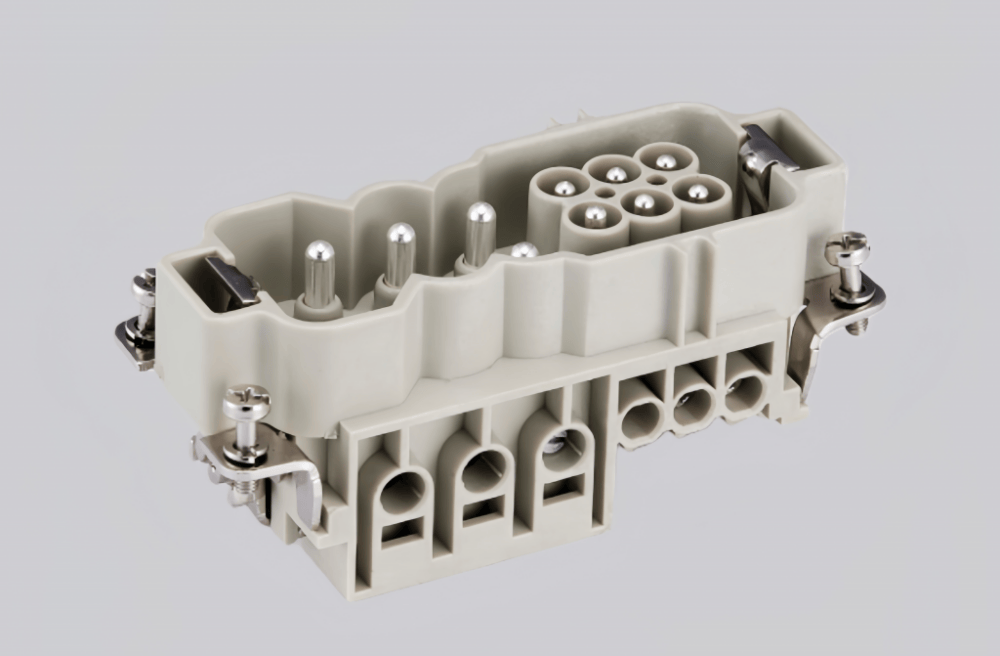

The HWK-006/6-M is a robust and reliable product designed for modern professional and industrial applications. Its compact and well-structured design allows for efficient installation and secure integration into a wide range of electrical and connection systems, ensuring stable performance in demanding environments.
Manufactured with high-quality materials, the HWK-006/6-M offers excellent durability and resistance to mechanical stress and wear. The optimized internal design ensures consistent and dependable performance during long-term operation. Precision engineering helps reduce maintenance requirements while maintaining high efficiency and reliability.
The HWK-006/6-M can be used as a core or supporting component in various systems. Each unit is produced under strict quality control standards to ensure safety, performance consistency, and long service life. With its balanced combination of strength, efficiency, and value, it is well suited for long-term professional use.
Technical Data
| Series | HK Insert Series |
| Male / Female | Male |
| Connection Type | Screw connection |
| Specifications | 16B |
| Number of Connector Contacts | 6 + 6 |
| Grounding Contacts | Yes |
| Rated Current | 40A / 16A |
| Rated Voltage | 690V / 400V |
| Rated Pulse Voltage | 8 kV / 6 kV |
| Pollution Degree | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ / ≤ 1 mΩ |
| Wire Gauge (mm²) | 4–10 mm² / 1–2.5 mm² |
| Wire Gauge (AWG) | 12–8 AWG / 18–14 AWG |
| Tightening / Testing Torque | 4 mm² → 3 Nm 6 mm² → 3 Nm 10 mm² → 3 Nm |
| Stripping Length | 4–10 mm² → 9.6 mm 1–2.5 mm² → 7.5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
