HWK-006/6-F | High-Quality Rectangular Connectors

The HWK-006/6-F is a dependable and well-engineered product developed for modern professional and industrial applications. Its compact and robust design enables efficient installation and secure integration into a wide range of electrical and connection systems, ensuring stable operation in demanding environments.

Manufactured using high-quality materials, the HWK-006/6-F delivers excellent durability and resistance to mechanical stress. The optimized internal structure ensures consistent performance and reliable operation over long-term use. Precision manufacturing helps reduce maintenance requirements while maintaining high efficiency and reliability.

The HWK-006/6-F can function as either a core or supporting component in various systems. Strict quality control throughout production ensures safety, performance consistency, and long service life. With its balanced combination of durability, efficiency, and value, it is well suited for long-term professional use.

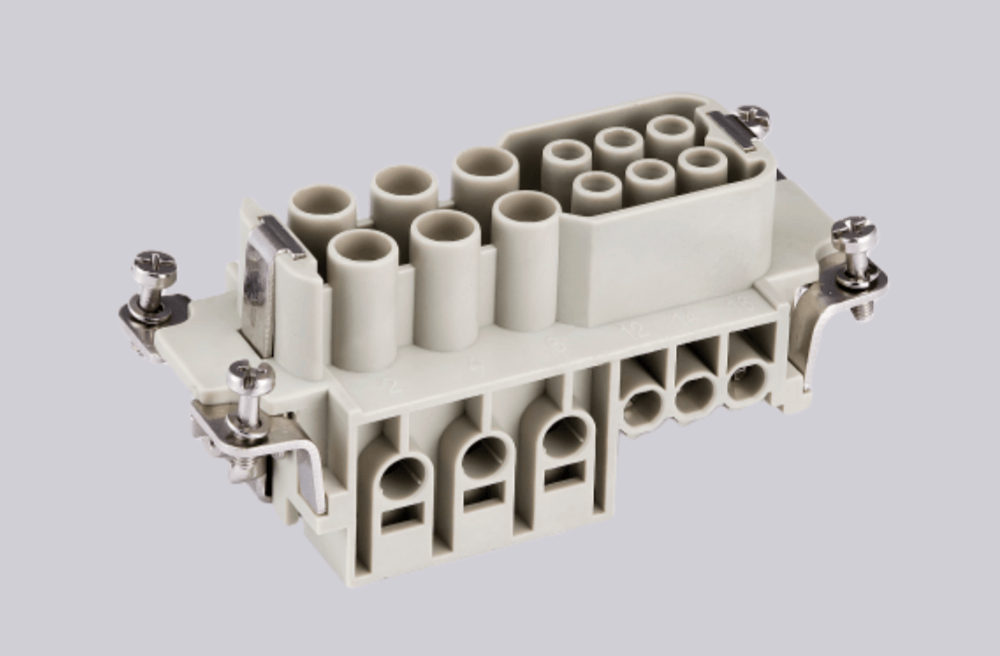

HWK-006/6-F | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HK Insert Series
Male / Female	Female
Connection Type	Screw connection
Specifications	16B
Number of Connector Contacts	6 + 6
Grounding Contacts	Yes
Rated Current	40A / 16A
Rated Voltage	690V / 400V
Rated Pulse Voltage	8 kV / 6 kV
Pollution Degree	3
Insulation Resistance	≥ 10¹⁰ Ω
Working Temperature	-40℃ to +125℃
Mating Cycles	≥ 500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-plated
Contact Resistance	≤ 0.3 mΩ / ≤ 1 mΩ
Wire Gauge (mm²)	4–10 mm² / 1–2.5 mm²
Wire Gauge (AWG)	12–8 AWG / 18–14 AWG
Stripping Length	4–10 mm² → 9.6 mm 1–2.5 mm² → 7.5 mm
Tightening / Testing Torque	4 mm² → 3 Nm 6 mm² → 3 Nm 10 mm² → 3 Nm 1–2.5 mm² → 0.5 Nm
Standard	DIN EN 60664 / DIN EN 61984
