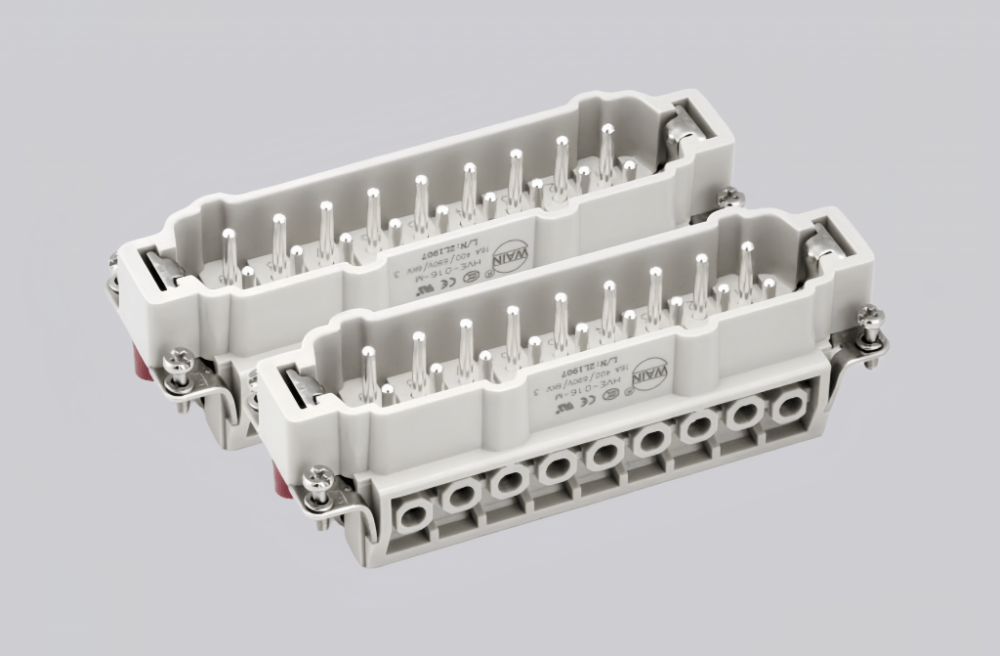

HVE-016-M(17-32) | High-Quality Rectangular Connectors

The HVE-016-M(17-32) is a high-voltage heavy-duty connector specialized in integrated power and signal transmission for industrial power distribution panels, high-voltage control equipment and heavy machinery electrical systems. It adopts a polycarbonate housing and copper alloy contacts with gold or silver plating, stably adapting to industrial pollution grade 3 environments and resisting thermal aging and voltage arcing.

As a 32(2×16)+PE core connector, it has a rated current of 16A, with 400V phase-to-ground voltage and 690V phase-to-phase voltage, and a 6kV rated impulse voltage. It uses screw crimping for 0.75 - 2.5mm² wires, featuring contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω to ensure safe and low-loss high-voltage transmission.

Operating reliably from -40°C to 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. It fits 48B metal housings with an IP65 rating and complies with IEC 60664 - 1 and IEC 61984 standards, ideal for stable high-voltage connectivity in harsh industrial scenarios.

HVE-016-M(17-32) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HVE insert series
Connection Type	Screw connection
Gender	Male
Specifications	24B
Number of Connector Contacts	16+2 (two contacts for high voltage safety)
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	400V
Rated Pulse Voltage	6KV
Pollution Degree	3
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Working Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.75-2.5mm²
Wire Gauge (AWG)	18-14 AWG
Tightening/Testing Torque	0.5Nm
Stripping Length	7mm
Standards	DIN EN 60 664, DIN EN 61984
