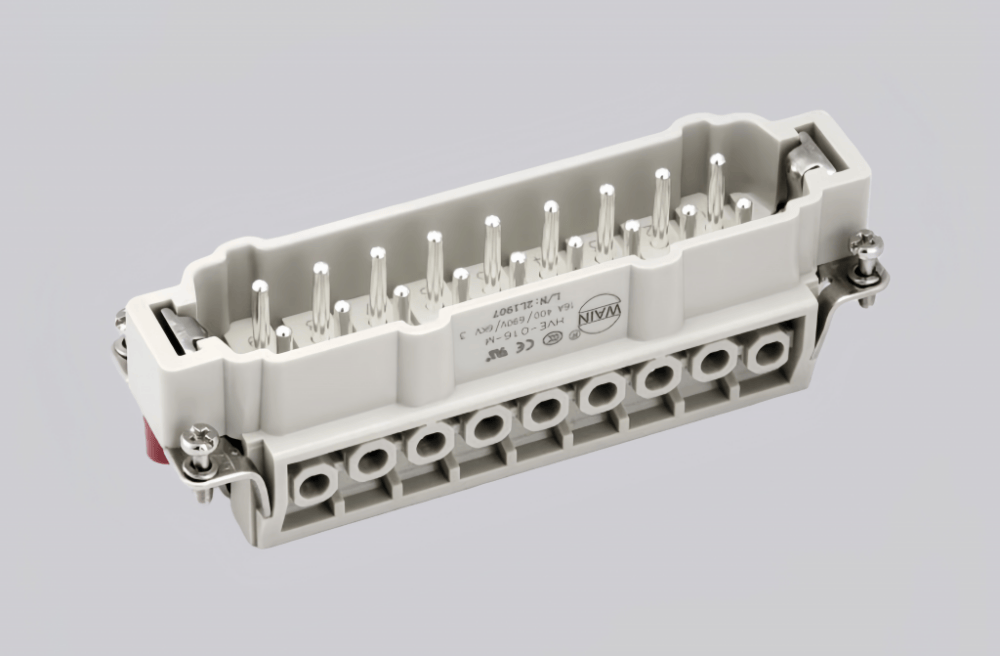

The HVE - 016 - M is a high-voltage heavy-duty connector tailored for stable power transmission in industrial power distribution panels, high-voltage control cabinets and new energy equipment. It adopts a polycarbonate housing and gold or silver-plated copper alloy contacts, which can stably cope with industrial pollution grade 3 environments and resist thermal degradation and electrical corrosion.
Rated for 16A current, it has 400V phase - to - ground voltage and 690V phase - to - phase voltage, with a 6kV rated impulse voltage and 600V compliance for UL/CSA standards. Adopting screw crimping, it fits 0.75 - 2.5mm² wires, with contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω to guarantee safe and efficient power transmission.
It works reliably at -40°C to 125°C, meets UL94 V - 0 flame retardant standards and supports more than 500 mating cycles. Compliant with IEC 60664 - 1 and IEC 61984, it fits 48B metal housings with IP65 protection, ideal for high-voltage connection in harsh industrial working conditions.

Technical Data
| Series | HVE insert series |
| Connection Type | Screw connection |
| Gender | Male |
| Specifications | 24B |
| Number of Connector Contacts | 16+2 (two contacts for high voltage safety) |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 400V |
| Rated Pulse Voltage | 6KV |
| Pollution Degree | 3 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Working Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (light gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.75-2.5mm² |
| Wire Gauge (AWG) | 18-14 AWG |
| Tightening/Testing Torque | 0.5Nm |
| Stripping Length | 7mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
