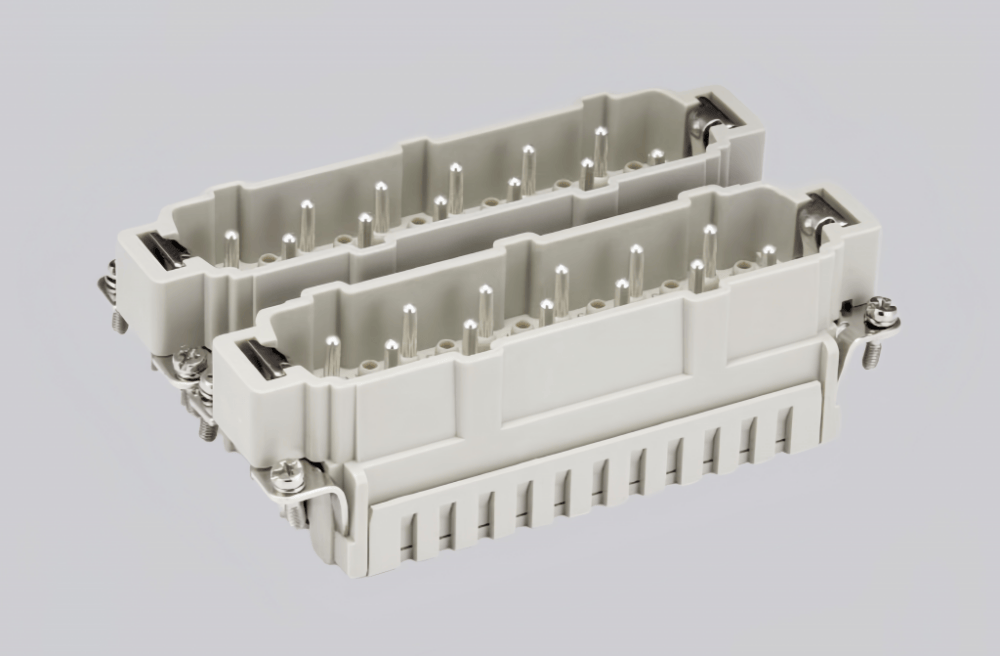

The HVE-010-MS(11-20) is a high-performance industrial connector engineered for stable power and signal transmission. Optimized for 11–20 AWG wire gauges, it supports a rated voltage of 600V AC/DC and a reliable current capacity of up to 20A, making it a trusted choice for industrial automation, heavy-duty machinery, and electrical control systems.
Built to thrive in harsh operating conditions, this connector features a rugged, corrosion-resistant housing and IP67 ingress protection. It can endure extreme temperatures from -40°C to 125°C, along with dust, moisture, and mechanical vibrations, guaranteeing uninterrupted performance even in rigorous industrial environments.
Equipped with a quick-lock mating mechanism, the HVE-010-MS(11-20) enables tool-free, one-step installation. This design not only drastically reduces assembly time but also prevents accidental disconnection, boosting operational safety and efficiency for on-site installation and maintenance teams.
Technical Data
| Series | HVES insert series |
| Connection type | Spring connection |
| Male/female | Male |
| Specifications | 24B、48B |
| Number of connector contacts | 10+2 (two contacts for high voltage safety) |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 830V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Parameters when class of pollution is 2 | 16A 1000V 8KV 2；16A 720/1250V 8KV 2 |
| Rated voltage as per UL/CSA | 600V |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60 664、DIN EN 61984 |
