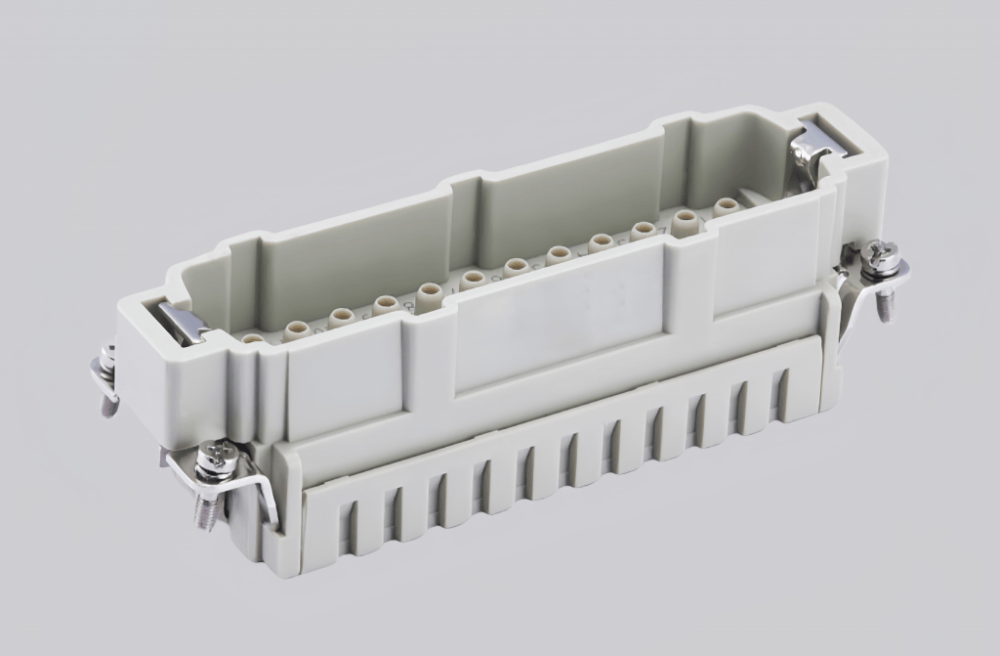

The HVE-010-MC is a high-voltage heavy-duty connector specialized for stable power transmission in new energy battery energy storage systems, industrial high-voltage frequency converters, and heavy machinery power control cabinets. It adopts a flame-retardant polycarbonate housing and silver-plated copper alloy contacts, effectively resisting electrical arcing, thermal aging, and chemical corrosion, ensuring long-term reliable operation in industrial pollution grade 3 environments.
Rated for 10A current and 1000V AC/DC, it withstands a 10kV rated impulse voltage to handle sudden high-voltage surges and transient overvoltage. It uses crimp termination, compatible with 0.5–2.5mm² wires, with contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω for low-loss, safe power transmission.
Operating reliably from -40°C to 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Fully compliant with IEC 60664-1 and IEC 61984, it fits 10B IP65 protective housings, making it an ideal solution for medium-power high-voltage multi-circuit connectivity scenarios.

Technical Data
| Series | HVE insert series |
| Connection Type | Crimp connection |
| Gender | Male |
| Specifications | 24B, 48B |
| Number of Connector Contacts | 10+2 (2 contacts for high-voltage safety) |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 830V |
| Rated Impulse Voltage | 8KV |
| Pollution Degree | Class 3 |
| Parameters at Pollution Degree 2 | 16A 1000V 8KV 2; 16A 720/1250V 8KV 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Operating Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 cycles |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.14-4.0mm² |
| Wire Gauge (AWG) | 26-12 AWG |
| Stripping Length | 7.5mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
