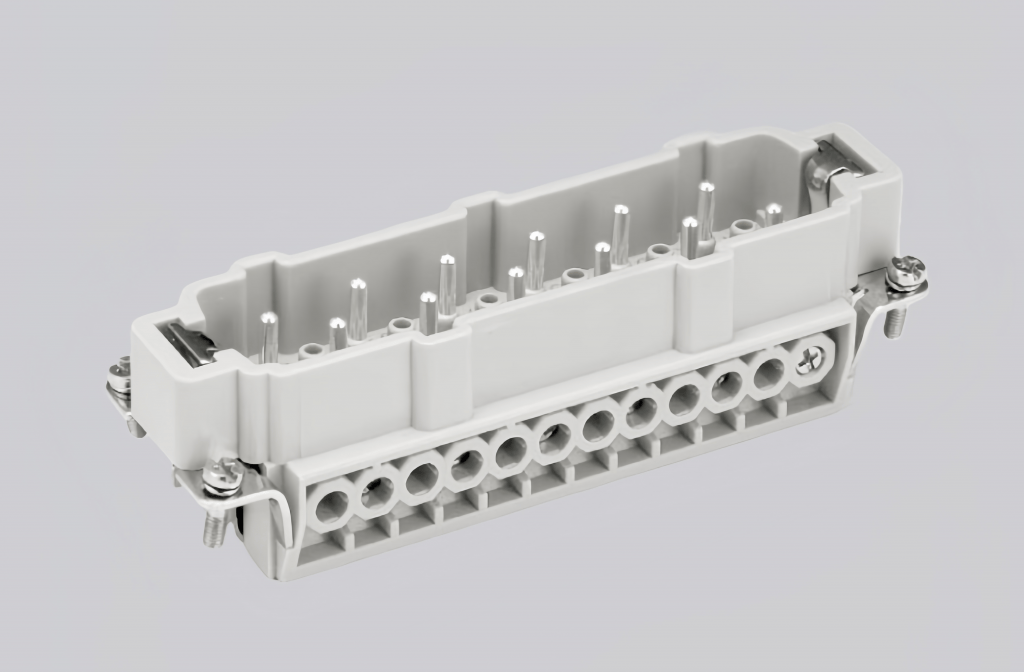

HVE-010-M | High-Quality Rectangular Connectors

The HVE-010-M is a high-voltage heavy-duty connector engineered for reliable power transmission in new energy storage systems, industrial high-voltage inverters, and heavy machinery power control units. It adopts a flame-retardant polycarbonate housing and silver-plated copper alloy contacts, which can resist electrical arcing, thermal aging, and chemical corrosion, ensuring stable operation in industrial pollution grade 3 environments.

Rated for 10A current and 1000V AC/DC, it withstands a 10kV rated impulse voltage to handle sudden high-voltage surges. It uses screw crimping termination, compatible with 0.5–2.5mm² wires, with contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω for low-loss, safe power transmission.

Operating reliably from -40°C to 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Fully compliant with IEC 60664-1 and IEC 61984, it fits 10B IP65 protective housings, making it an ideal solution for medium-power high-voltage connectivity scenarios.

HVE-010-M | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HVE insert series
Connection Type	Screw connection
Gender	Male
Specifications	24B, 48B
Number of Connector Contacts	10+2 (2 contacts for high-voltage safety)
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	830V
Rated Impulse Voltage	8KV
Pollution Degree	Class 3
Parameters at Pollution Degree 2	16A 1000V 8KV 2; 16A 720/1250V 8KV 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500 cycles
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-Plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.75-2.5mm²
Wire Gauge (AWG)	18-14 AWG
Tightening/Testing Torque	0.5Nm
Stripping Length	7mm
Standards	DIN EN 60 664, DIN EN 61984
