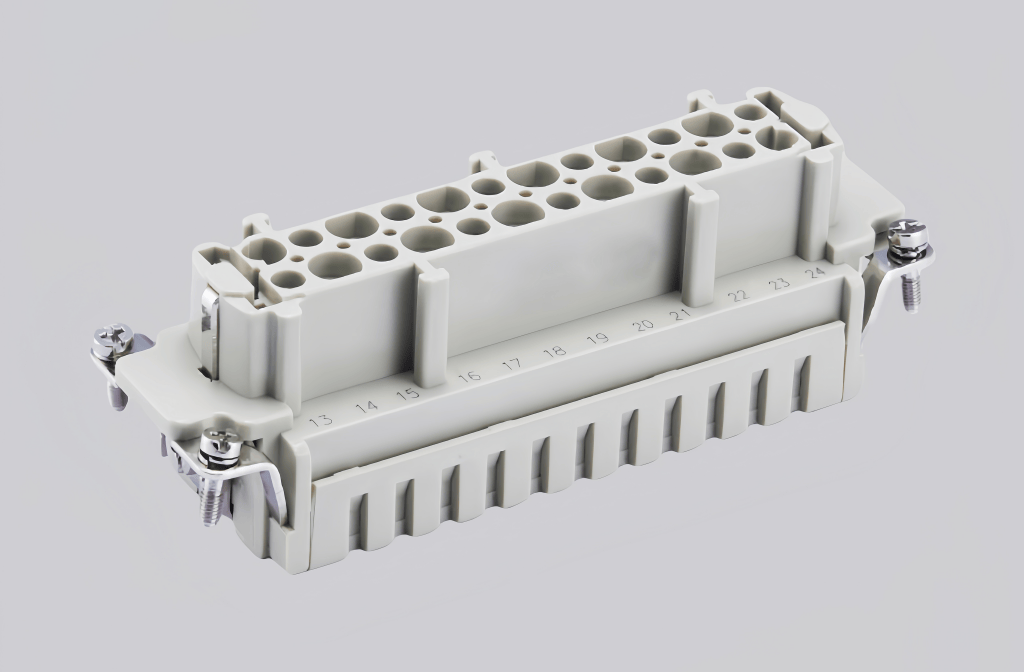

The HVE-010-FC is a female high-voltage connector with 10+PE cores, specially designed for stable power and signal transmission in new energy storage systems, industrial high-voltage control cabinets, and heavy-duty equipment power modules. It adopts a light grey polycarbonate housing (RAL 7032) and hard-silver plated copper alloy contacts, which can resist thermal aging and chemical corrosion, ensuring reliable operation in industrial pollution grade 3 environments.
It has a rated current of 16A and a rated voltage of 830V (600V as per UL/CSA), with an 8kV rated impulse voltage to handle sudden high-voltage surges. Adopting crimp termination, it fits 0.14 - 4.0mm² wires, and the contact resistance is less than 1mΩ while the insulation resistance exceeds 10¹⁰Ω, enabling low-loss and safe power transmission. It is also equipped with 250V safety delay pins for enhanced operational safety.
Operating stably between -40°C and 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Compatible with H10B housings, it is a reliable choice for medium-power high-voltage connection scenarios in industrial and new energy fields.

Technical Data
| Series | HVE insert series |
| Connection Type | Crimp connection |
| Gender | Female |
| Specifications | 24B, 48B |
| Number of Connector Contacts | 10+2 (2 contacts for high-voltage safety) |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 830V |
| Rated Impulse Voltage | 8KV |
| Pollution Degree | Class 3 |
| Parameters at Pollution Degree 2 | 16A 1000V 8KV 2; 16A 720/1250V 8KV 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Operating Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 cycles |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.14-4.0mm² |
| Wire Gauge (AWG) | 26-12 AWG |
| Stripping Length | 7.5mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
