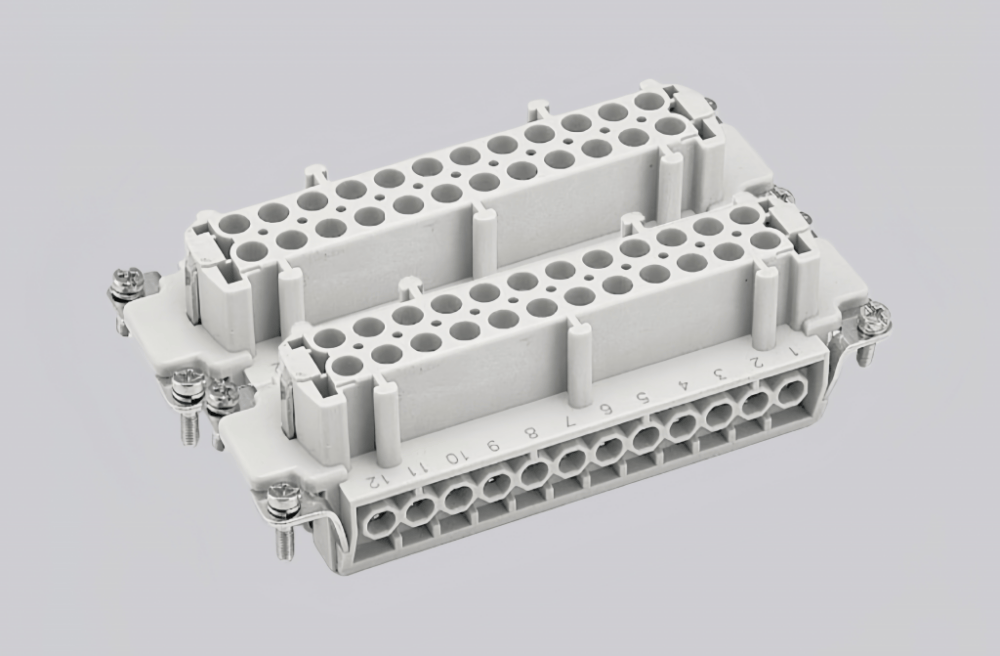

HVE-010-F(11-20) | High-Quality Rectangular Connectors

The HVE-010-F(11-20) is a high-performance industrial connector designed for stable power and signal transmission. Optimized for 11–20 AWG wire gauges, it supports a rated voltage of 600V AC/DC and a current capacity of up to 20A, making it a dependable choice for industrial automation, heavy-duty machinery, and electrical control systems.

Built to perform in harsh operating environments, this connector features a rugged, corrosion-resistant housing and IP67 ingress protection. It can withstand extreme temperatures ranging from -40°C to 125°C, along with dust, moisture, and mechanical vibrations, ensuring uninterrupted operation even in rigorous industrial settings.

Equipped with a quick-lock mating mechanism, the HVE-010-F(11-20) enables tool-free, one-step installation. This design not only drastically cuts down assembly time but also prevents accidental disconnection, enhancing operational safety and efficiency for on-site installation and maintenance teams.

HVE-010-F(11-20) | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HVE insert series
Connection type	Screw connection
Male/female	Female
Specifications	24B、48B
Number of connector contacts	10+2 (two contacts for high voltage safety)
Grounding contacts	Yes
Rated current	16A
Rated voltage	830V
Rated pulse voltage	8KV
Class of pollution	3
Parameters when class of pollution is 2	16A 1000V 8KV 2；16A 720/1250V 8KV 2
Rated voltage as per UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Working temperature	-40℃...+125℃
Mating cycles	≥500
Inserts material	Polycarbonate
Inserts color	RAL 7032 (light gray)
Flame retardant rating as per UL94	V0
Contact material	Copper alloy
Surface treatment	Silver-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.75-2.5mm²
Wire gauge (AWG)	18-14 AWG
Tightening/testing torque	0.5Nm
Stripping length	7mm
Standard	DIN EN 60 664、DIN EN 61984
