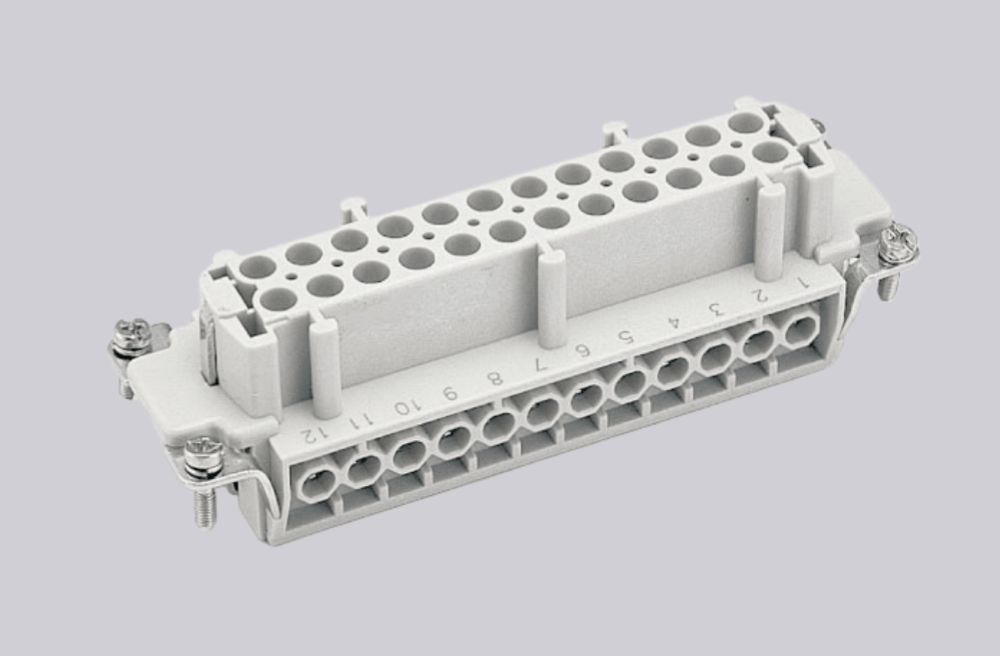

HVE-010-F | High-Quality Rectangular Connectors

The HVE-010-F is a high-voltage heavy-duty connector optimized for stable power transmission in new energy storage inverters, industrial high-voltage frequency converters, and heavy equipment power distribution units. It features a corrosion-resistant aluminum alloy housing and silver-plated copper alloy contacts, delivering excellent resistance to electrical arcing, thermal cycling, and outdoor environmental corrosion, ideal for both indoor and outdoor harsh operating conditions.

Rated for 10A current and 1000V AC/DC, it withstands a 10kV rated impulse voltage to handle sudden high-voltage surges and transient overvoltage. Adopting crimp termination, it is compatible with 0.5–2.5mm² wires, with contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω for low-loss, safe power transmission.

Operating reliably from -40°C to 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Fully compliant with IEC 60664-1 and IEC 61984, it fits 10B IP65 protective housings, making it a dependable solution for medium-power high-voltage connectivity scenarios.

HVE-010-F | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HVE insert series
Connection Type	Screw connection
Gender	Female
Specifications	24B, 48B
Number of Connector Contacts	10+2 (2 contacts for high-voltage safety)
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	830V
Rated Impulse Voltage	8KV
Pollution Degree	Class 3
Parameters at Pollution Degree 2	16A 1000V 8KV 2; 16A 720/1250V 8KV 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500 cycles
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-Plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.75-2.5mm²
Wire Gauge (AWG)	18-14 AWG
Tightening/Testing Torque	0.5Nm
Stripping Length	7mm
Standards	DIN EN 60 664, DIN EN 61984
