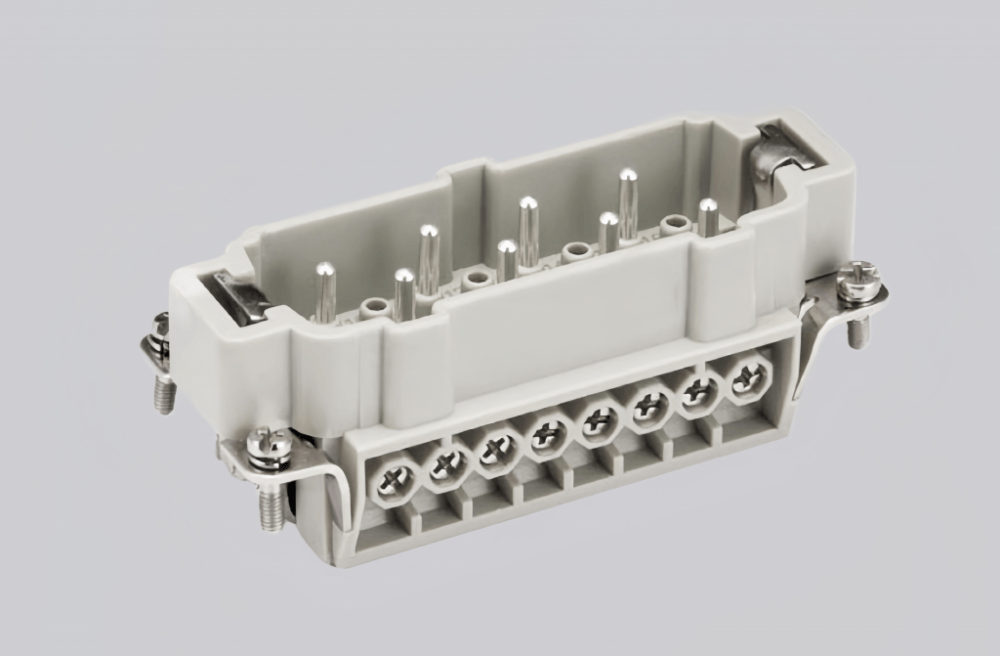

HVE-006-M | High-Quality Rectangular Connectors

The HVE-006-M is a high-voltage heavy-duty connector designed for reliable power transmission in industrial control cabinets, new energy on-board power modules, and high-voltage distribution boxes. It adopts a flame-retardant polycarbonate housing and silver-plated copper alloy contacts, which can resist thermal aging and electrical corrosion, ensuring stable operation in industrial pollution grade 3 environments.

Rated for 16A current, it supports 830V rated voltage and an 8kV rated impulse voltage to endure sudden high-voltage surges. Adopting screw crimping, it fits 0.75–2.5mm² wires, with contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω, ensuring low-loss and safe power transmission.

It works stably at -40°C to 125°C, meets UL94 V-0 flame retardant standards and supports more than 500 mating cycles. Compliant with IEC 60664-1 and IEC 61984, it fits 16B IP65 protective housings, making it ideal for high-voltage connection needs in medium-power industrial and new energy scenarios.

HVE-006-M | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HVE insert series
Connection Type	Screw connection
Gender	Male
Specifications	16B, 32B
Number of Connector Contacts	6+2 (2 contacts for high-voltage safety)
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	830V
Rated Impulse Voltage	8KV
Pollution Degree	Class 3
Parameters at Pollution Degree 2	16A 1000V 8KV 2; 16A 720/1250V 8KV 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Operating Temperature	-40℃...+125℃
Mating Cycles	≥500 cycles
Insert Material	Polycarbonate
Insert Color	RAL 7032 (Light Gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper Alloy
Surface Treatment	Silver-Plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.75-2.5mm²
Wire Gauge (AWG)	18-14 AWG
Tightening/Testing Torque	0.5Nm
Stripping Length	7mm
Standards	DIN EN 60 664, DIN EN 61984
