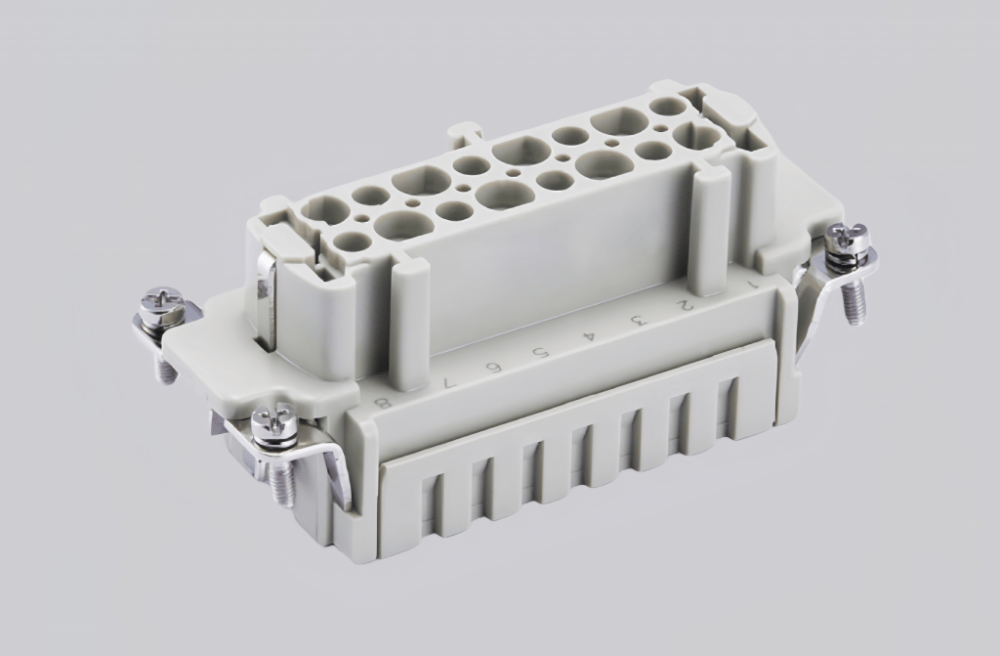

The HVE-006-FC is a female high-voltage connector with crimp termination, designed for stable power transmission in new energy battery management systems, industrial high-voltage control cabinets, and electric vehicle power modules. It features a flame-retardant polycarbonate housing and copper alloy contacts with gold or silver plating, which can resist thermal aging and electrical corrosion, ensuring reliable operation in industrial pollution grade 3 environments.
It has a rated current of 16A and a rated voltage of 830V for its 6 working pins, paired with an 8kV rated impulse voltage to cope with sudden high-voltage surges. Adopting crimp termination, it fits 0.14–4.0mm² wires, with contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω to realize low-loss and safe power transmission. It adopts a 6+PE core design and is equipped with 2 safety delay pins for multi-circuit transmission.
Operating stably between -40°C and 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Compliant with IEC 60664-1 and IEC 61984, it fits 16B IP65 plastic or metal housings, making it a reliable option for medium-power high-voltage connections in industrial and new energy fields.
Technical Data
| Series | HVE insert series |
| Connection Type | Crimp connection |
| Gender | Female |
| Specifications | 16B, 32B |
| Number of Connector Contacts | 6+2 (2 contacts for high-voltage safety) |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 830V |
| Rated Impulse Voltage | 8KV |
| Pollution Degree | Class 3 |
| Parameters at Pollution Degree 2 | 16A 1000V 8KV 2; 16A 720/1250V 8KV 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Operating Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 cycles |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.14-4.0mm² |
| Wire Gauge (AWG) | 26-12 AWG |
| Stripping Length | 7.5mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
