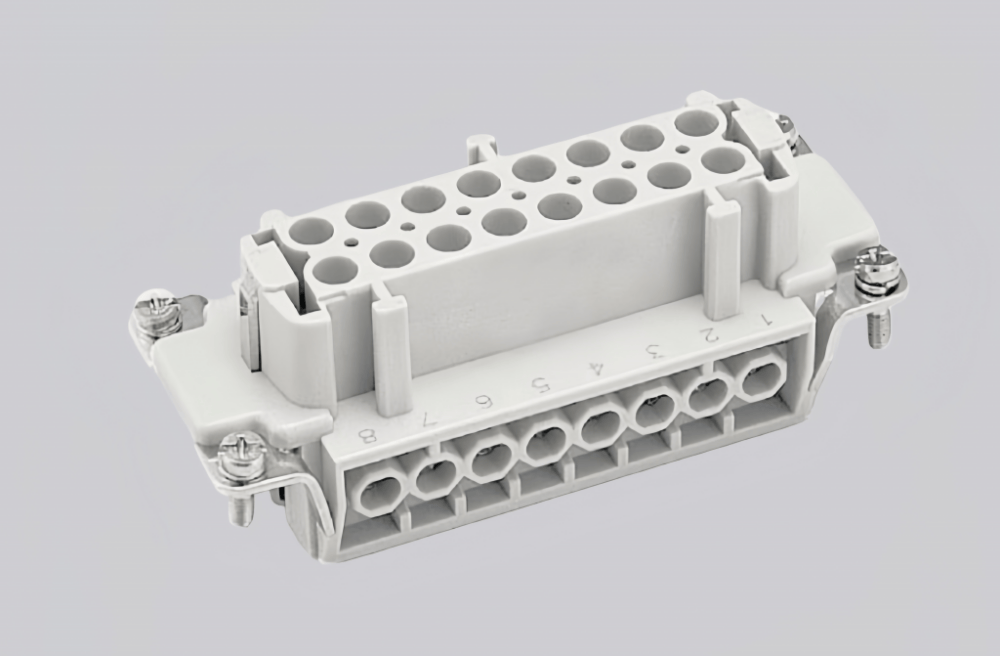

The HVE - 006 - F is a high - voltage heavy - duty female insert connector built for stable power transmission in new energy vehicle power boxes, industrial automation control cabinets, and high - voltage distribution modules. It features a flame - retardant polycarbonate housing and silver - plated copper alloy contacts, which can resist electrical corrosion and thermal aging, guaranteeing reliable operation even in industrial pollution grade 3 environments.
It has a rated current of 16A and supports a rated voltage of 830V, paired with an 8kV rated impulse voltage to effectively withstand sudden high - voltage surges. Adopting screw crimping termination, it is compatible with 0.75 - 2.5mm² wires. With contact resistance ≤1mΩ and insulation resistance ≥10¹⁰Ω, it achieves safe power transmission with minimal energy loss.
This connector operates stably within a temperature range of - 40°C to 125°C, meets UL94 V - 0 flame retardant standards, and supports more than 500 mating cycles. Compliant with IEC 60664 - 1 and IEC 61984, it fits 16B IP65 protective housings, making it a reliable option for medium - power high - voltage connection in industrial and new energy fields.

Technical Data
| Series | HVE insert series |
| Connection Type | Screw connection |
| Gender | Female |
| Specifications | 16B, 32B |
| Number of Connector Contacts | 6+2 (2 contacts for high-voltage safety) |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 830V |
| Rated Impulse Voltage | 8KV |
| Pollution Degree | Class 3 |
| Parameters at Pollution Degree 2 | 16A 1000V 8KV 2; 16A 720/1250V 8KV 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Operating Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 cycles |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-Plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.75-2.5mm² |
| Wire Gauge (AWG) | 18-14 AWG |
| Tightening/Testing Torque | 0.5Nm |
| Stripping Length | 7mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
