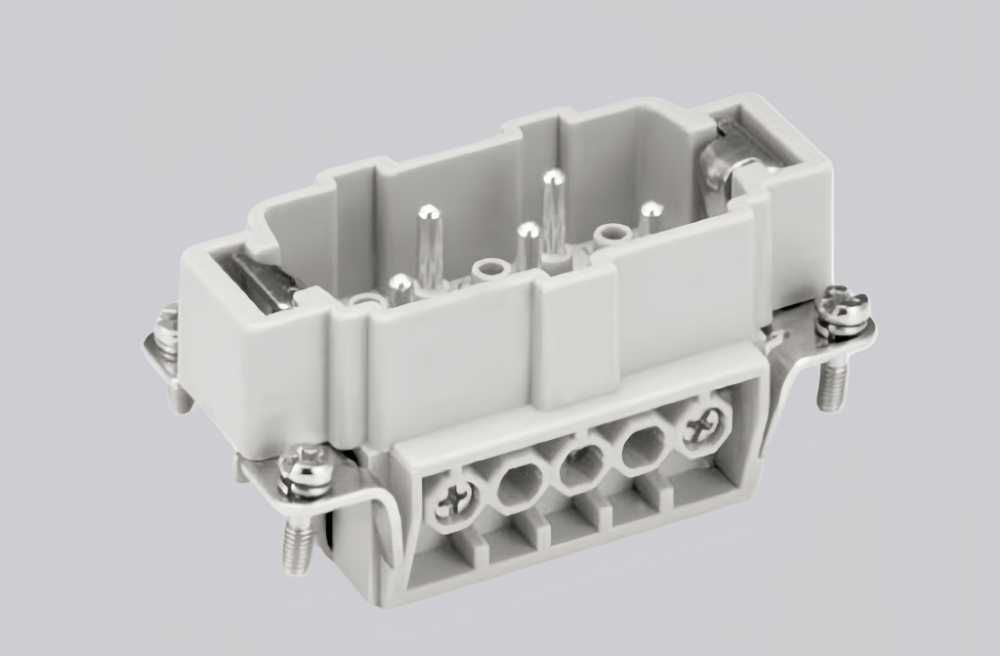

HVE-003-M | High-Quality Rectangular Connectors

The HVE-003-M is a compact high-voltage heavy-duty connector engineered for safe power transmission in precision high-voltage instruments, new energy battery management systems, and industrial control micro-cabinets. It adopts a flame-retardant polycarbonate housing and gold-plated copper alloy contacts, which can resist electrical arcing, thermal aging and chemical corrosion, ensuring stable operation in compact and high-precision industrial environments.

Rated for 3A current, it supports a 400V phase-to-ground voltage and 690V phase-to-phase voltage, with a 6kV rated impulse voltage to withstand high-voltage surges. It uses screw crimping termination, compatible with 0.2–1.5mm² fine wires, featuring contact resistance ≤1mΩ and insulation resistance ≥10¹¹Ω for ultra-safe low-loss transmission.

Operating reliably from -40°C to 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Fully compliant with IEC 60664-1 and IEC 61984, it fits miniaturized metal housings with IP65 protection, making it an ideal choice for compact high-voltage connectivity scenarios.

HVE-003-M | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HVE insert series
Connection Type	Screw connection
Gender	Male
Specifications	10B
Number of Connector Contacts	3+2 (two contacts for high voltage safety)
Grounding Contacts	Yes
Rated Current	16A
Rated Voltage	830V
Rated Pulse Voltage	8KV
Pollution Degree	3
Parameters at Pollution Degree 2	16A 1000V 8KV 2; 16A 720/1250V 8KV 2
Rated Voltage (UL/CSA)	600V
Insulation Resistance	≥10¹⁰Ω
Working Temperature	-40℃...+125℃
Mating Cycles	≥500
Insert Material	Polycarbonate
Insert Color	RAL 7032 (light gray)
Flame Retardant Rating (UL94)	V0
Contact Material	Copper alloy
Surface Treatment	Silver-plated
Contact Resistance	≤1mΩ
Wire Gauge (mm²)	0.75-2.5mm²
Wire Gauge (AWG)	18-14 AWG
Tightening/Testing Torque	0.5Nm
Stripping Length	7mm
Standards	DIN EN 60 664, DIN EN 61984
