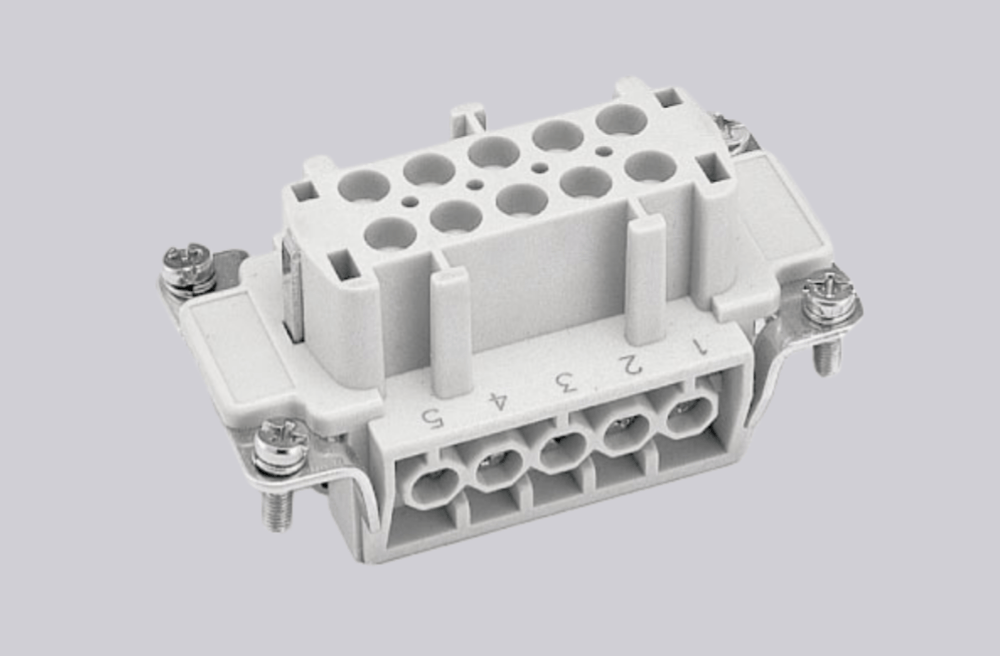

The HVE-003-F is a compact high-voltage heavy-duty connector optimized for safe power transmission in precision high-voltage test equipment, new energy battery management modules, and industrial control micro-cabinets. Constructed with a corrosion-resistant aluminum alloy housing and gold-plated copper alloy contacts, it delivers excellent resistance to electrical arcing, thermal aging, and chemical corrosion, ensuring stable performance in compact, high-precision operating environments.
Rated for 3A current, it supports 400V phase-to-ground voltage and 690V phase-to-phase voltage, with a 6kV rated impulse voltage to withstand high-voltage surges. It adopts screw crimping termination, compatible with 0.2–1.5mm² fine wires, featuring contact resistance ≤1mΩ and insulation resistance ≥10¹¹Ω for ultra-safe, low-loss power transmission.
Operating reliably from -40°C to 125°C, it meets UL94 V-0 flame retardant standards and supports over 500 mating cycles. Fully compliant with IEC 60664-1 and IEC 61984, it fits miniaturized metal housings with IP65 protection, making it a premium solution for compact high-voltage connectivity scenarios.
Technical Data
| Series | HVE insert series |
| Connection Type | Screw connection |
| Gender | Female |
| Specifications | 10B |
| Number of Connector Contacts | 3+2 (two contacts for high voltage safety) |
| Grounding Contacts | Yes |
| Rated Current | 16A |
| Rated Voltage | 830V |
| Rated Pulse Voltage | 8KV |
| Pollution Degree | 3 |
| Parameters at Pollution Degree 2 | 16A 1000V 8KV 2; 16A 720/1250V 8KV 2 |
| Rated Voltage (UL/CSA) | 600V |
| Insulation Resistance | ≥10¹⁰Ω |
| Working Temperature | -40℃...+125℃ |
| Mating Cycles | ≥500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (light gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤1mΩ |
| Wire Gauge (mm²) | 0.75-2.5mm² |
| Wire Gauge (AWG) | 18-14 AWG |
| Tightening/Testing Torque | 0.5Nm |
| Stripping Length | 7mm |
| Standards | DIN EN 60 664, DIN EN 61984 |
