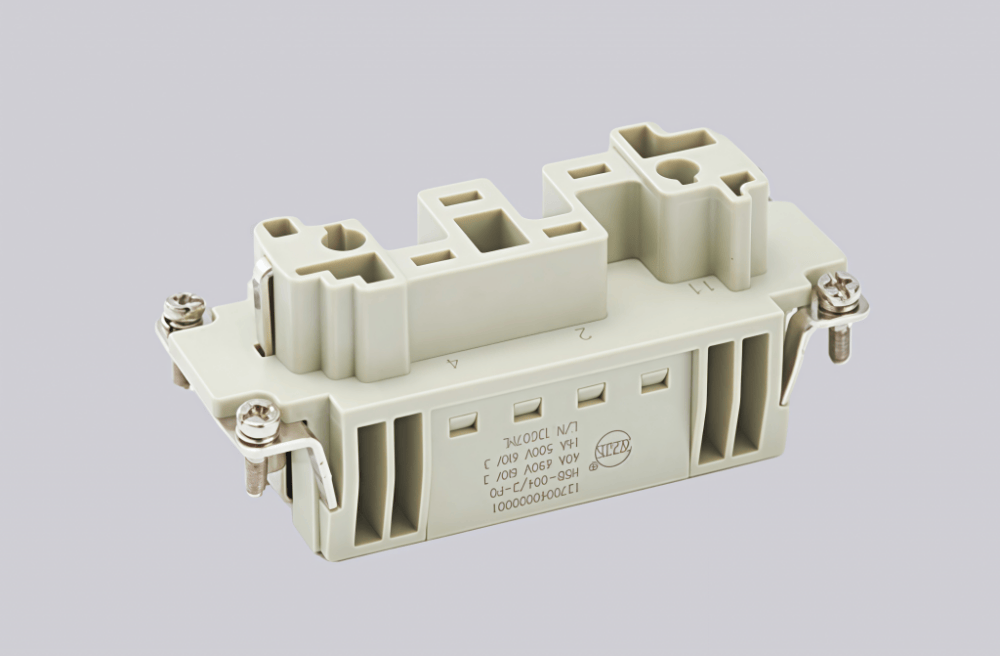

The HSB-004/2-FQ is a high-performance industrial connector engineered for heavy-duty scenarios demanding stable power and signal transmission. Its compact yet rugged build is tailored to fit constrained industrial spaces, making it a versatile choice for diverse equipment integration needs.
Equipped with IP67-rated ingress protection, this connector resists dust, moisture, and extreme temperatures spanning from -40°C to 125°C. The 4 gold-plated contacts ensure low contact resistance and strong corrosion resistance, enabling consistent, long-lasting performance even in harsh operating conditions.
Rated for 600V AC/DC with 5A current capacity per contact, the HSB-004/2-FQ is ideal for automation systems, robotics, and heavy machinery. Its user-friendly bayonet locking mechanism ensures secure mating and fast disconnection, effectively reducing equipment downtime in industrial environments.
Technical Data
| Series | HSB insert series |
| Connection type | Spring connection (quick connection) |
| Male/female | Female |
| Specifications | 16B, 32B |
| Number of connector contacts | 4 (16B), 2 (32B) |
| Grounding contacts | Yes |
| Rated current | 40A (16B), 16A (32B) |
| Rated voltage | 690V (16B), 500V (32B) |
| Rated pulse voltage | 6kV (16B), 6kV (32B) |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.5-2.5mm² (16B), 0.5-6mm² (32B) |
| Wire gauge (AWG) | 20-14 AWG (16B), 20-10 AWG (32B) |
| Stripping length | 12.5mm/12mm |
| Standard | DIN EN 60 664, DIN EN 61984 |
