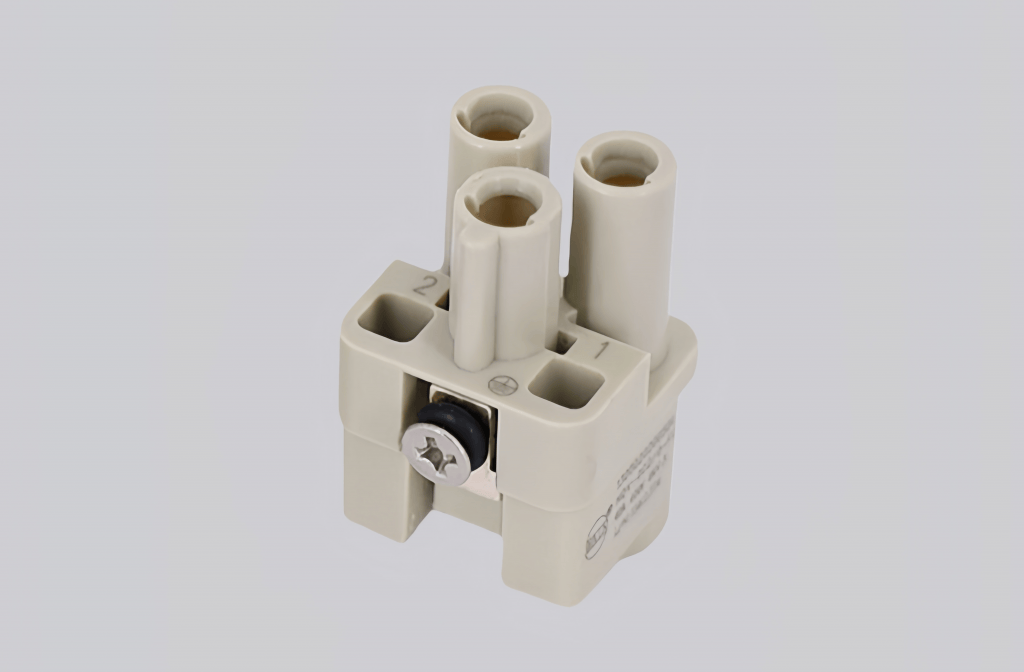

The HQV-002/0-FC is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. It features high-quality copper alloy contacts with precision surface plating, ensuring low contact resistance, excellent electrical conductivity, and stable electrical performance under high current conditions.
The connector adopts a secure crimp connection design, providing strong mechanical retention and effective vibration resistance for long-term operation. With an optimized contact layout and compact structure, the HQV-002/0-FC allows efficient space utilization while maintaining consistent electrical and mechanical performance. Integrated grounding capability further enhances connection safety.
Designed to meet strict industrial standards, the HQV-002/0-FC offers excellent durability, wear resistance, and dependable performance in harsh working environments. It is well suited for industrial automation, power distribution, and equipment connection systems where reliability, safety, and efficiency are essential.
Technical Data
| Series | HQ insert series |
| Male/female | Female |
| Connection type | Crimp connection |
| Specifications | 3A |
| Number of contacts | 2 |
| Grounding contacts | Yes |
| Rated current | 40A |
| Rated voltage | 400V |
| Rated voltage (UL / CSA) | 600V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Limiting temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Material insert | Polycarbonate |
| Color insert | RAL 7032 (light gray) |
| Material flammability class (UL94) | V0 |
| Material contacts | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 1.5–10 mm² |
| Wire gauge (AWG) | 16–8 AWG |
| Standard | DIN EN 60664 / DIN EN 61984 |
