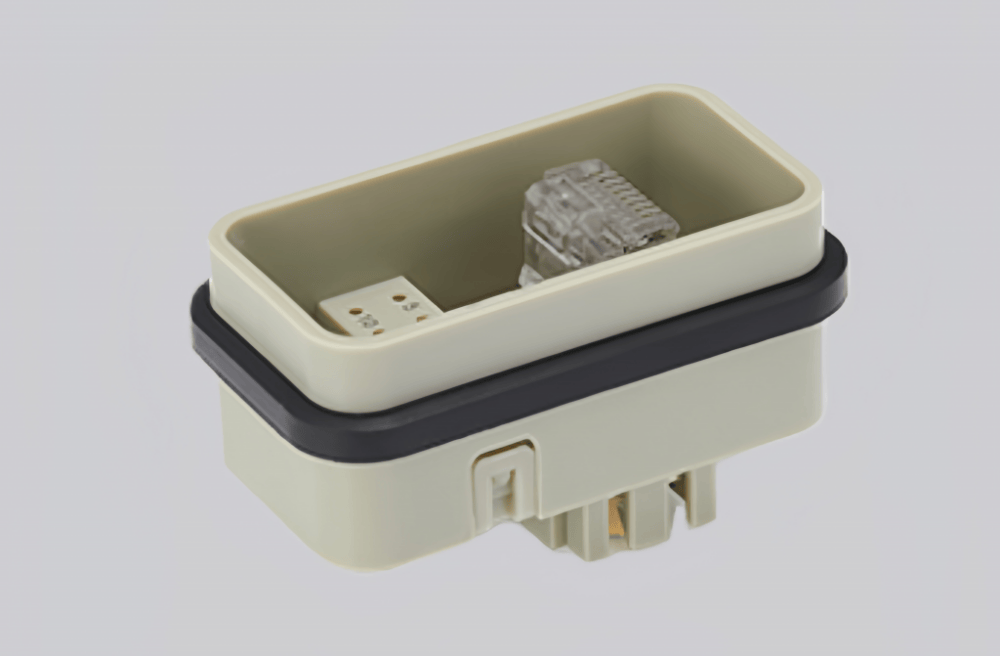

The HQ-RJ45/10-MC is engineered for professional and industrial environments where reliable data connectivity is essential. Its practical and compact design allows secure installation and stable integration into communication and control systems, supporting consistent signal transmission under demanding operating conditions.
Constructed with high-quality, durable materials, the HQ-RJ45/10-MC maintains reliable performance during continuous operation and repeated connection cycles. The internal configuration is optimized to preserve signal integrity and stable contact, even in applications subject to vibration, movement, or environmental stress.
The HQ-RJ45/10-MC is suitable for a wide range of system layouts, serving as either a main or auxiliary communication interface. Controlled manufacturing and inspection processes ensure consistent quality and dependable operation. With its emphasis on reliability, adaptability, and long service life, it is a practical solution for long-term professional networking and data applications.
Technical Data
| Series | HQ Insert Series |
| Male / Female | Male |
| Connection Type | Crimp connection |
| Specifications | HC |
| Number of Connector Contacts | 10 + RJ45 |
| Grounding Contacts | No |
| Rated Current | 5 A / 1 A |
| Rated Voltage | 50 V |
| Rated Pulse Voltage | 0.8 kV |
| Class of Pollution | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +85℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated / Gold-plated |
| Contact Resistance | ≤ 3 mΩ |
| Wire Gauge (mm²) | 0.09–0.52 mm² |
| Wire Gauge (AWG) | 28–20 AWG |
| Stripping Length | 5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
