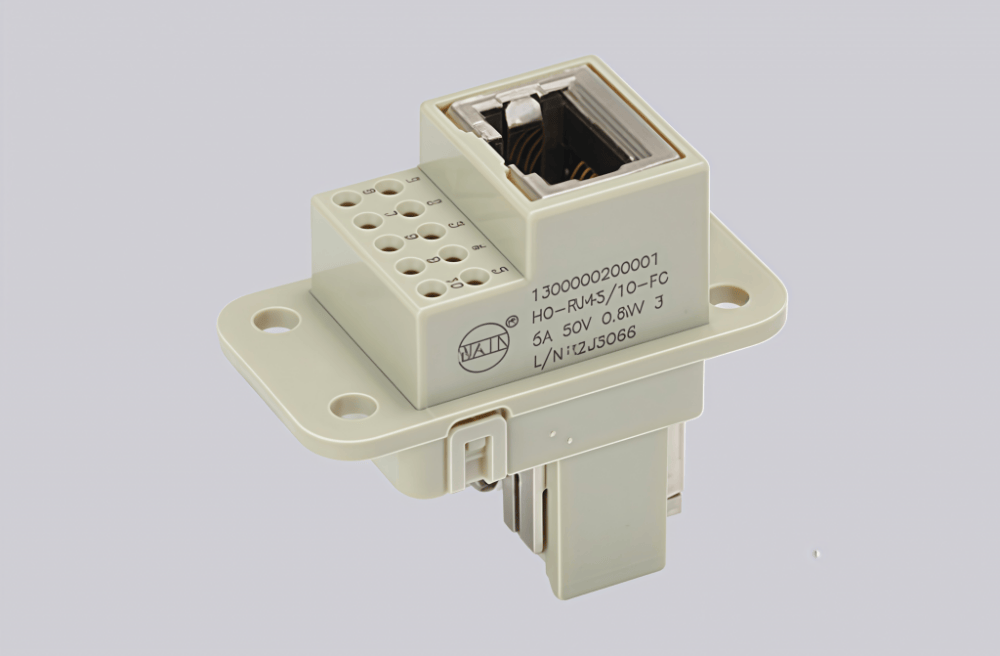

The HQ-RJ45/10-FC is designed for professional and industrial applications that require stable and reliable data transmission. Its compact and functional structure supports secure installation and dependable integration into communication and control systems, ensuring consistent signal performance in demanding environments.
Manufactured with durable, high-quality materials, the HQ-RJ45/10-FC delivers dependable operation under continuous use and mechanical stress. The internal design is optimized to maintain stable contacts and signal integrity, even in conditions involving vibration or frequent connection cycles.
The HQ-RJ45/10-FC is suitable for a wide range of system configurations, functioning as either a primary or supporting communication interface. Controlled production and inspection processes ensure consistent quality and operational reliability. With its focus on stability, adaptability, and long service life, it is a practical solution for long-term professional networking applications.
Technical Data
| Series | HQ Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | HC |
| Number of Connector Contacts | 10 + RJ45 |
| Grounding Contacts | No |
| Rated Current | 5 A / 1 A |
| Rated Voltage | 50 V |
| Rated Pulse Voltage | 0.8 kV |
| Class of Pollution | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +85℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated / Gold-plated |
| Contact Resistance | ≤ 3 mΩ |
| Wire Gauge (mm²) | 0.09–0.52 mm² |
| Wire Gauge (AWG) | 28–20 AWG |
| Stripping Length | 5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
