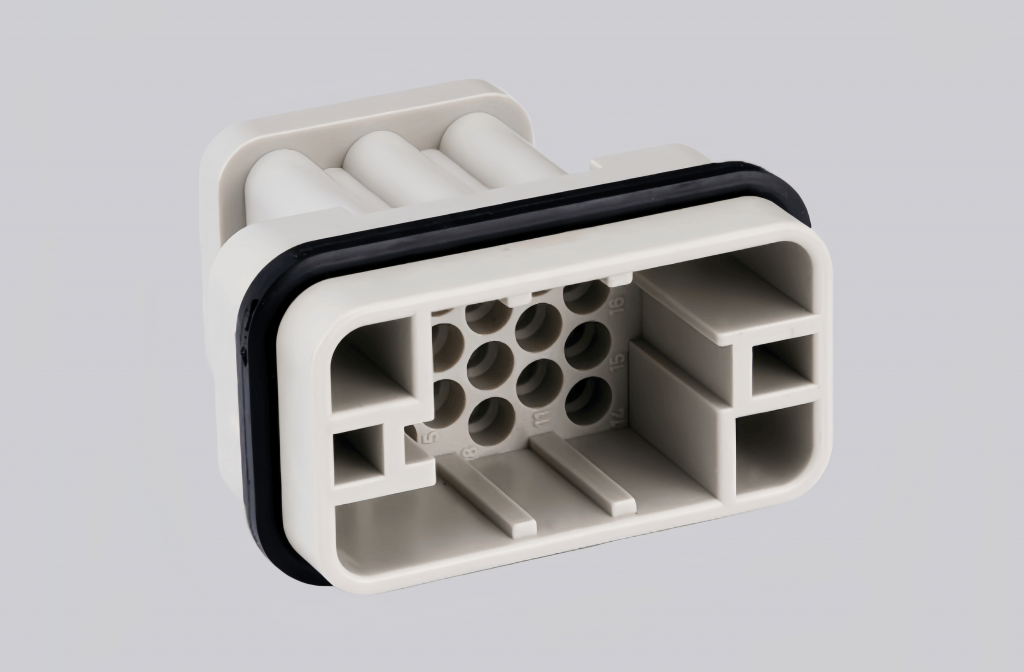

The HQ-017-MC is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. It features high-quality copper alloy contacts with precision surface plating, ensuring low contact resistance, excellent electrical conductivity, and stable performance under high current and voltage conditions.
The connector adopts a secure crimp connection design, providing strong mechanical retention and effective vibration resistance during long-term operation. With an optimized contact configuration and compact structure, the HQ-017-MC enables efficient space utilization while maintaining consistent electrical and mechanical performance. Grounding capability further enhances overall connection safety.
Designed in compliance with strict industrial standards, the HQ-017-MC offers excellent durability, wear resistance, and dependable performance in harsh working environments. It is well suited for industrial automation, power distribution, and equipment connection systems where reliability, safety, and efficiency are essential.

Technical Data
| Series | HQ insert series |
| Male/female | Male |
| Connection type | Crimp connection |
| Specifications | HC |
| Number of connector contacts | 17 |
| Grounding contacts | Yes |
| Rated current | 10A |
| Rated voltage | 250V |
| Rated pulse voltage | 4KV |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Class of pollution | 2 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated / Gold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14–2.5 mm² |
| Wire gauge (AWG) | 26–14 AWG |
| Stripping length | 0.14–1.5 mm² → 8 mm 2.5 mm² → 6 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
