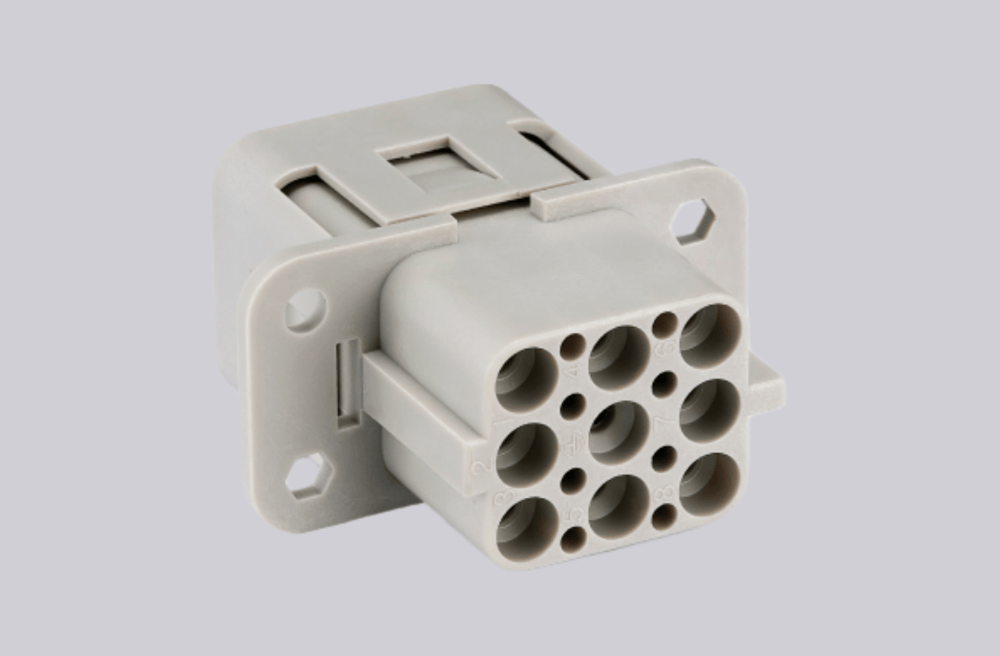

The HQ-008/0-FC is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. It is manufactured with high-quality copper alloy contacts and precision surface plating, ensuring low contact resistance, excellent electrical conductivity, and stable performance under high current conditions.
The connector adopts a secure crimp connection method, providing strong mechanical retention and effective resistance to vibration during long-term operation. With an optimized contact layout and compact structure, the HQ-008/0-FC allows efficient space utilization while maintaining consistent electrical and mechanical performance. Integrated grounding capability further enhances connection safety.
Engineered to comply with strict industrial standards, the HQ-008/0-FC offers excellent durability, wear resistance, and dependable performance in harsh operating environments. It is an ideal choice for industrial automation, power distribution, and equipment connection systems where safety, reliability, and efficiency are critical.
Technical Data
| Item | Specification |
|---|---|
| Series | HQ insert series |
| Male/female | Female |
| Connection type | Crimp connection |
| Specifications | HC |
| Number of connector contacts | 8 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated / Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14–4 mm² |
| Wire gauge (AWG) | 26–12 AWG |
| Stripping length | 7.5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
