HQ-005/0-MC/C | High-Quality Rectangular Connectors

The HQ-005/0-MC/C is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. It is manufactured with high-quality copper alloy contacts and precision surface plating, ensuring low contact resistance, excellent electrical conductivity, and stable electrical performance under high current conditions.

Featuring a secure crimp connection design, the HQ-005/0-MC/C provides strong mechanical retention and effective vibration resistance for long-term operation. Its optimized contact configuration and compact structure allow efficient space utilization while maintaining consistent electrical and mechanical performance. Grounding capability further enhances overall connection safety.

Engineered in accordance with strict industrial standards, the HQ-005/0-MC/C offers outstanding durability, wear resistance, and dependable performance in harsh working environments. It is an ideal choice for industrial automation, power distribution, and equipment connection systems where reliability, safety, and efficiency are critical.

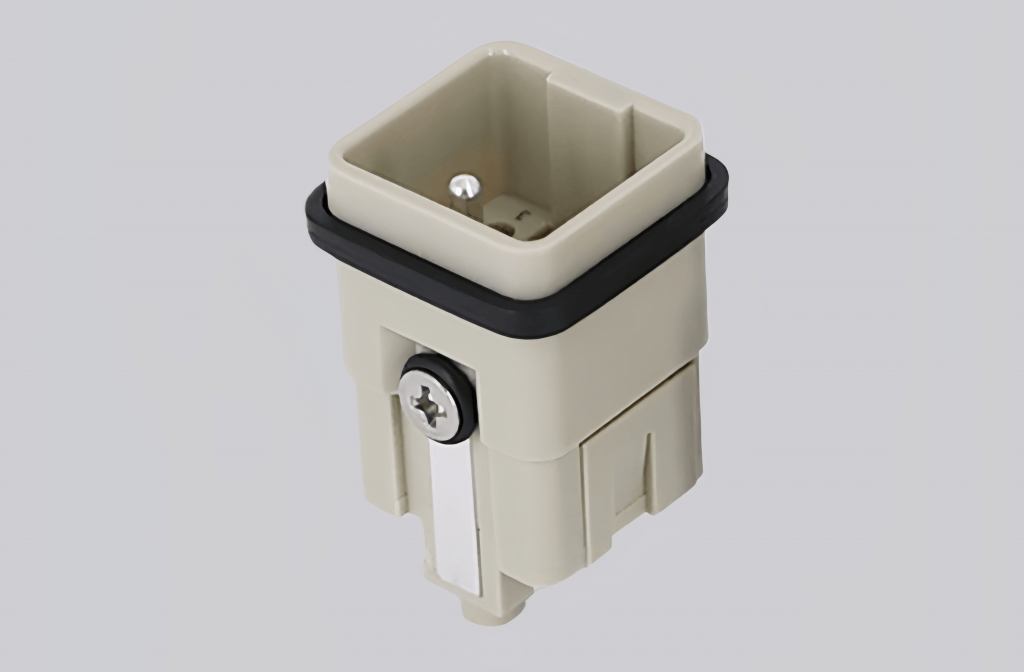

HQ-005/0-MC/C | High-Quality Rectangular Connectors-RedTech360

Technical Data

Series	HQ insert series
Male/female	Male
Connection type	Crimp connection
Specifications	3A
Number of contacts	5
Grounding contacts	Yes
Rated current	16A
Rated voltage	230V / 400V
Rated voltage (UL / CSA)	600V
Rated impulse voltage	4KV
Pollution degree	3
Parameters at pollution degree 2	16A · 320/500V · 4KV · PD2
Insulation resistance	≥10¹ºΩ
Limiting temperature	-40℃…+125℃
Mating cycles	≥500
Material insert	Polycarbonate
Color insert	RAL 7032 (light gray)
Material flammability class (UL94)	V0
Material contacts	Copper alloy
Surface treatment	Silver-plated / Gold-plated
Contact resistance	≤1mΩ
Wire gauge (mm²)	0.14–4.0 mm²
Wire gauge (AWG)	26–12 AWG
Standard	DIN EN 60664 / DIN EN 61984
