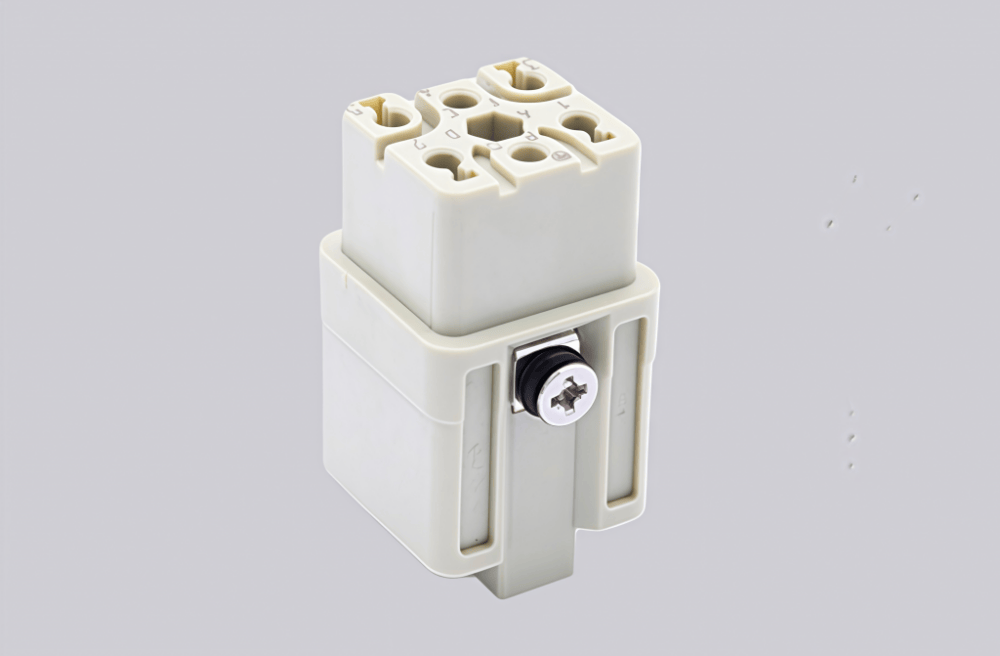

The HQ-005/0-FQ is developed for professional and industrial applications that require stable and efficient connection solutions. Its compact and functional design supports secure installation and reliable integration into electrical and control systems, ensuring consistent operation in demanding environments.
Manufactured with durable, high-quality materials, the HQ-005/0-FQ delivers dependable performance under continuous operation and mechanical stress. The internal configuration is optimized to maintain stable contact and reliable functionality, even in conditions involving vibration or frequent handling.
The HQ-005/0-FQ is suitable for a wide range of system configurations, functioning as either a primary or supporting connection component. Controlled production and inspection processes ensure consistent quality and operational safety. With its balanced focus on reliability, adaptability, and long service life, it is a practical choice for long-term professional use.
Technical Data
| Series | HQ Insert Series |
| Male / Female | Female |
| Connection Type | Spring connection (quick connection) |
| Specifications | 3A |
| Number of Connector Contacts | 5 |
| Grounding Contacts | Yes |
| Rated Current | 16 A |
| Rated Voltage | 230 V / 400 V |
| Rated Pulse Voltage | 4 kV |
| Class of Pollution | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Wire Gauge (mm²) | 0.5–4.0 mm² / 0.14–2.5 mm² |
| Wire Gauge (AWG) | 20–12 AWG / 26–14 AWG |
| Stripping Length | 10 ± 0.5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
