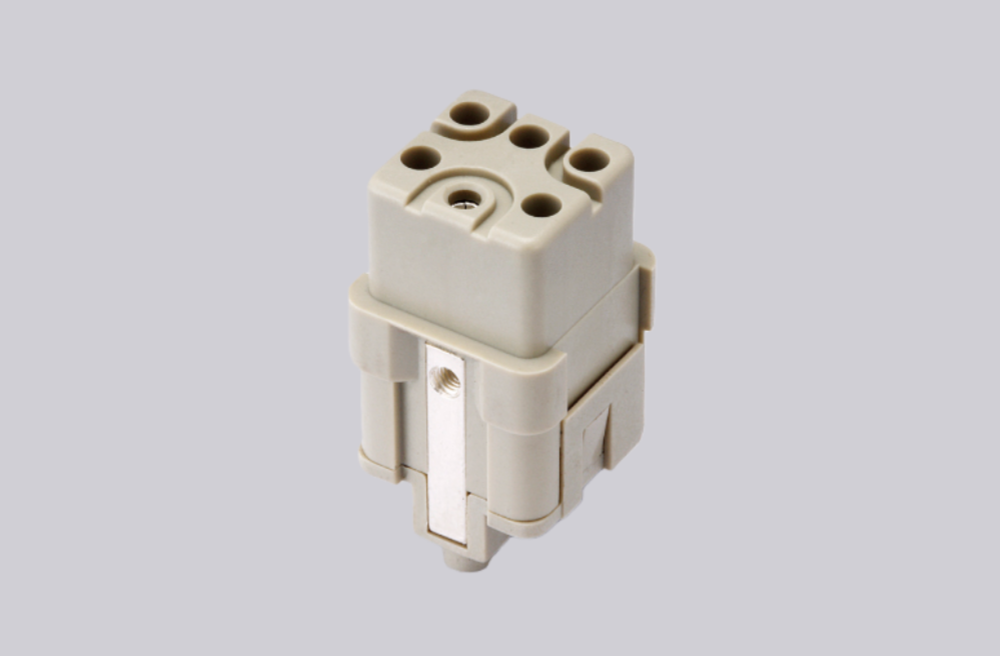

The HQ-005/0-FC is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. Manufactured with high-quality copper alloy contacts and precision surface plating, it ensures low contact resistance and excellent electrical conductivity. Its robust construction supports stable performance under high current and voltage conditions.
The connector adopts a secure crimp connection method, providing strong mechanical retention and vibration resistance for long-term operation. With an optimized contact layout and compact design, the HQ-005/0-FC enables efficient space utilization while maintaining consistent electrical performance. Integrated grounding capability further enhances operational safety.
Engineered to meet strict industrial standards, the HQ-005/0-FC offers outstanding durability, wear resistance, and reliability in harsh working conditions. It is widely suitable for industrial automation, power distribution, and equipment connection systems where safety, stability, and efficiency are critical.
Technical Data
| Series | HQ insert series |
| Male/female | Female |
| Connection type | Crimp connection |
| Specifications | 3A |
| Number of connector contacts | 5 |
| Grounding contacts | Yes |
| Rated current | 16A |
| Rated voltage | 230V / 400V |
| Rated pulse voltage | 4KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Working temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating (UL94) | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated / Gold-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 0.14–4 mm² |
| Wire gauge (AWG) | 26–12 AWG |
| Stripping length | 7.5 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
