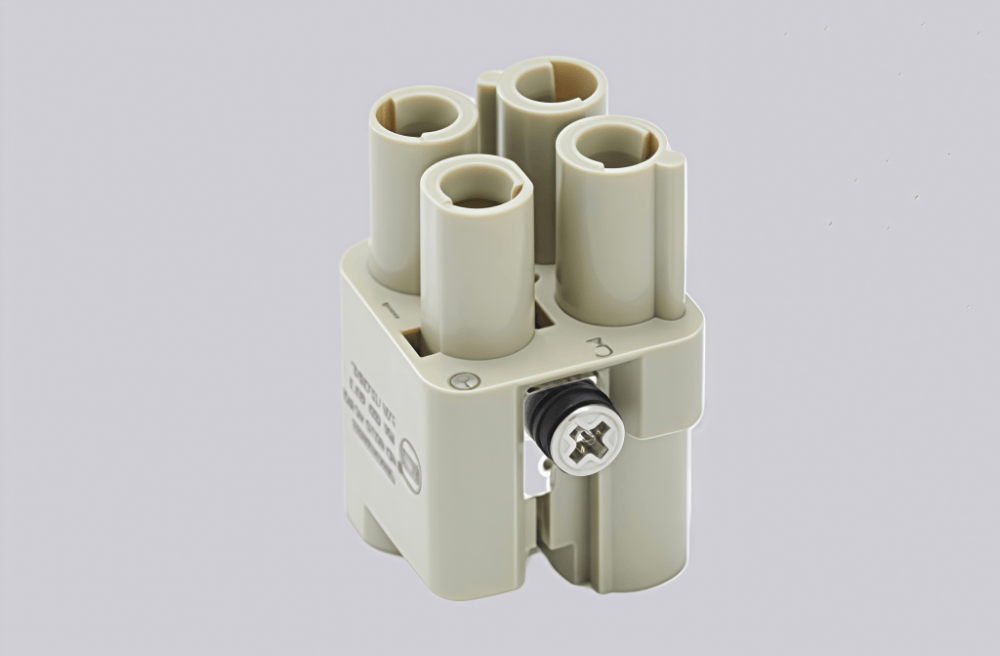

The HQ-003/0-FC is designed for professional and industrial applications that require stable and efficient connection performance. Its compact and practical structure supports secure installation and reliable integration into electrical and control systems, helping maintain consistent operation in demanding working environments.
Manufactured with carefully selected materials, the HQ-003/0-FC offers strong structural integrity and dependable performance under continuous use. The internal design is optimized to support reliable connections while withstanding mechanical stress, vibration, and frequent operation in industrial conditions.
The HQ-003/0-FC is suitable for use in a wide range of system configurations, either as a main connection point or a supporting component. Controlled production and inspection processes ensure consistent quality and operational safety. With its balance of reliability, adaptability, and efficiency, it is a practical solution for long-term professional use.
Technical Data
| Series | HQ Insert Series |
| Male / Female | Female |
| Connection Type | Crimp connection |
| Specifications | 3A |
| Number of Connector Contacts | 3 |
| Grounding Contacts | Yes |
| Rated Current | 40 A |
| Rated Voltage | 400 V |
| Rated Pulse Voltage | 6 kV |
| Class of Pollution | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated / Gold-plated |
| Contact Resistance | ≤ 1 mΩ |
| Wire Gauge (mm²) | 1.5–10 mm² |
| Wire Gauge (AWG) | 16–8 AWG |
| Stripping Length | 0.14–2.5 mm² → 9 mm 4–6 mm² → 9.6 mm 10 mm² → 15 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
