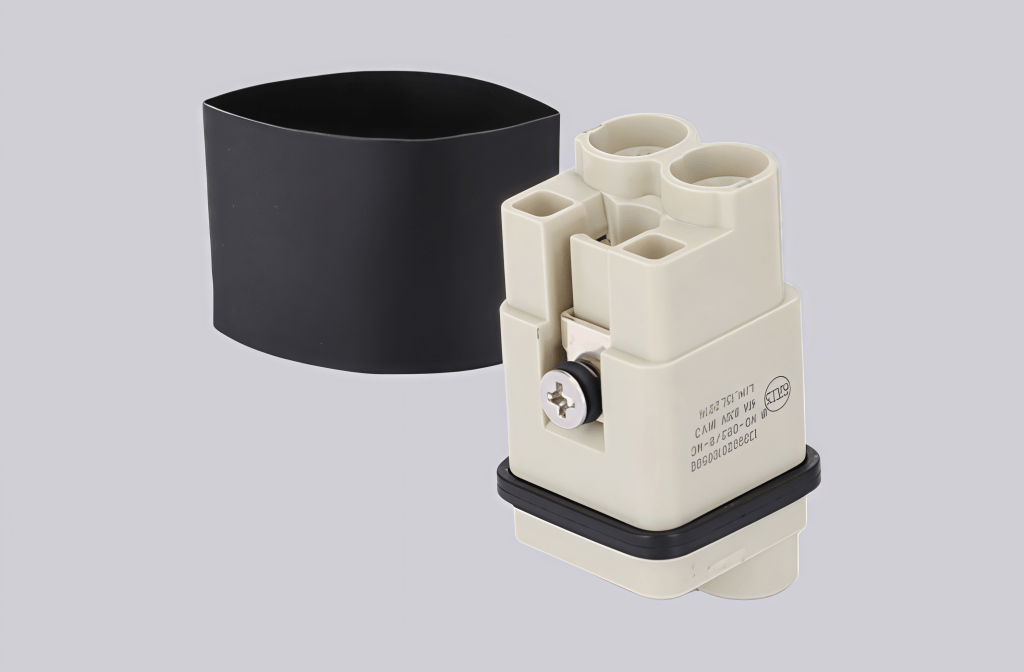

The HQ-002/0-MC is a high-performance connector insert designed for reliable power and signal transmission in demanding industrial environments. It is manufactured with high-quality copper alloy contacts and precision surface plating, ensuring low contact resistance, excellent electrical conductivity, and stable electrical performance under high current conditions.
Using a secure crimp connection design, the HQ-002/0-MC provides strong mechanical retention and effective vibration resistance for long-term operation. Its optimized contact configuration and compact structure enable efficient space utilization while maintaining consistent electrical and mechanical performance. Grounding capability further enhances overall connection safety.
Engineered in accordance with strict industrial standards, the HQ-002/0-MC offers outstanding durability, wear resistance, and dependable performance in harsh operating environments. It is an ideal solution for industrial automation, power distribution, and equipment connection systems where safety, reliability, and efficiency are critical.
Technical Data
| Series | HQ insert series |
| Male/female | Male |
| Connection type | Crimp connection |
| Specifications | 3A |
| Number of contacts | 2 |
| Grounding contacts | Yes |
| Rated current | 40A |
| Rated voltage | 830V |
| Rated voltage (UL / CSA) | 600V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Insulation resistance | ≥10¹ºΩ |
| Limiting temperature | -40℃…+125℃ |
| Mating cycles | ≥500 |
| Material insert | Polycarbonate |
| Color insert | RAL 7032 (light gray) |
| Material flammability class (UL94) | V0 |
| Material contacts | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤1mΩ |
| Wire gauge (mm²) | 1.5–10 mm² |
| Wire gauge (AWG) | 16–8 AWG |
| Standard | DIN EN 60664 / DIN EN 61984 |
