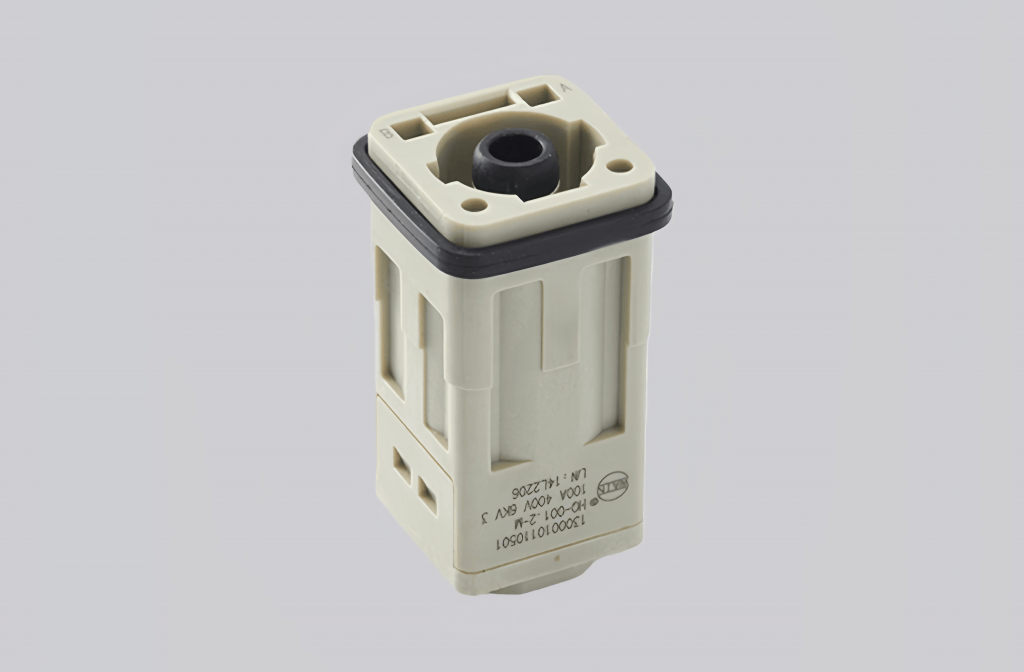

The HQ-001.1-M is developed to meet the demands of professional and industrial applications that require dependable mechanical and electrical performance. Its functional design emphasizes secure mating and stable operation, allowing smooth installation and reliable use across a variety of system configurations.
Built with durable materials and a reinforced structure, the HQ-001.1-M maintains consistent performance under continuous operation and varying load conditions. The internal construction is arranged to support long-term stability, helping reduce the impact of vibration, mechanical stress, and repeated use in challenging environments.
The HQ-001.1-M is suitable for both standard installations and customized system designs. Controlled manufacturing and inspection processes ensure consistent quality and operational safety. With a strong focus on reliability, adaptability, and service life, it provides a practical and cost-effective solution for long-term professional applications.
Technical Data
| Series | HQ Insert Series |
| Male / Female | Male |
| Connection Type | Axial bolt connection |
| Specifications | 3A |
| Number of Connector Contacts | 1 |
| Grounding Contacts | No |
| Rated Current | 100 A |
| Rated Voltage | 400 V |
| Rated Voltage (UL/CSA) | 600 V |
| Rated Pulse Voltage | 6 kV |
| Class of Pollution | 3 |
| Insulation Resistance | ≥ 10¹⁰ Ω |
| Working Temperature | -40℃ to +125℃ |
| Mating Cycles | ≥ 500 |
| Insert Material | Polycarbonate |
| Insert Color | RAL 7032 (Light Gray) |
| Flame Retardant Rating (UL94) | V0 |
| Contact Material | Copper Alloy |
| Surface Treatment | Silver-plated |
| Contact Resistance | ≤ 0.3 mΩ |
| Wire Gauge (mm²) | 10–25 mm² |
| Tightening / Testing Torque | 10 mm² → 6 Nm 16 mm² → 6 Nm 25 mm² → 7 Nm |
| Stripping Length | 10 mm |
| Standard | DIN EN 60664 / DIN EN 61984 |
