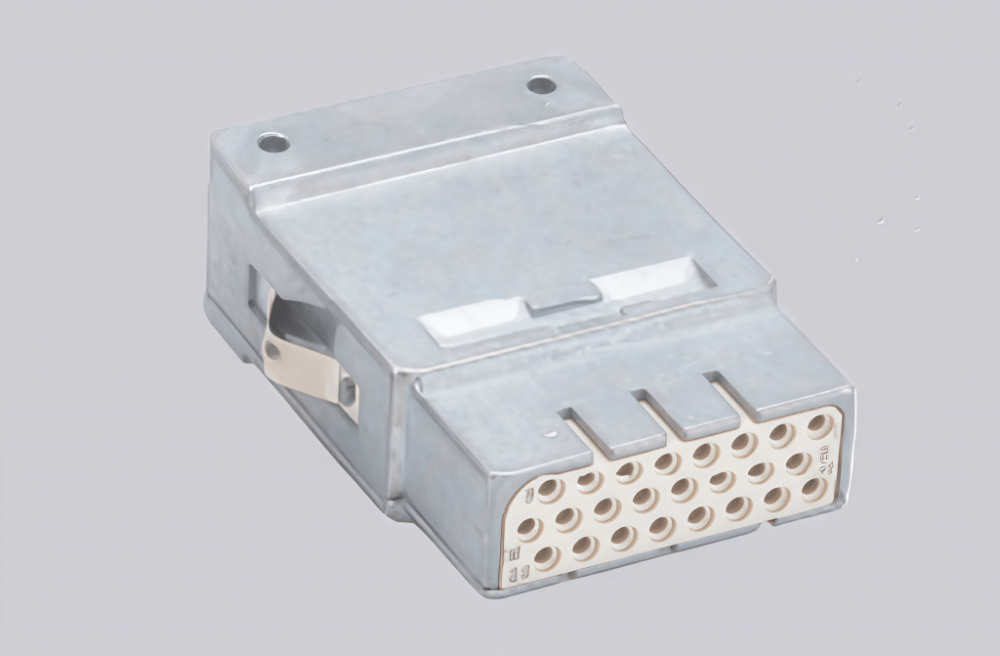

The HMSB-024-FC is a high-reliability industrial connector perfectly mated with the HMSB-024-MC, forming a robust connectivity solution for critical applications. Sharing the same IP67 dustproof/waterproof protection, it withstands extreme temperatures (-40°C to +125°C), heavy vibration, and chemical corrosion, ensuring consistent durability in harsh environments.
Equipped with 24 precision contacts rated for 16A/500V AC/DC, it delivers stable signal transmission and efficient power distribution, mirroring the performance of its counterpart. Crafted from corrosion-resistant alloy and flame-retardant materials, it complies with UL, IEC, and RoHS standards. The tool-free quick-locking mechanism enables effortless installation and maintenance, consistent with the MC variant’s user-friendly design.
Ideal for industrial automation, robotics, renewable energy systems, and heavy-duty machinery, it maintains full application compatibility with the HMSB-024-MC.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 24 |
| Rated current | 4A |
| Rated voltage | 32V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.09-0.52mm² |
| Wire gauge (AWG) | 28-20 AWG |
| Maximum cable diameter | 2mm |
| Stripping length | 5mm |
| Standard | DIN EN 60664, DIN EN 61984 |
