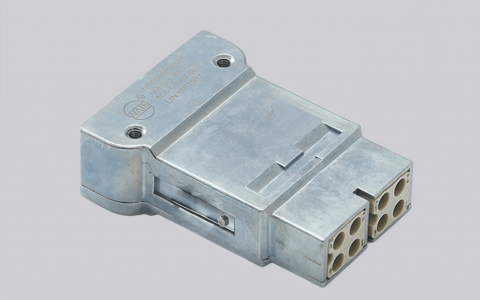

HMMB/1-008-MC is a high-performance industrial component designed for reliable operation in demanding working environments. Manufactured with top-tier materials, it exhibits exceptional structural stability, superior corrosion resistance, and excellent wear resistance, ensuring consistent performance under harsh conditions involving friction, chemical contact, or temperature fluctuations. Equipped with precision-machined dimensions and an optimized functional configuration, this component enables seamless integration with existing systems, perfectly meeting mainstream industrial application needs. Suitable for machinery manufacturing, industrial automation, aerospace, and marine engineering sectors, it delivers steady performance while effectively reducing maintenance frequency and operational costs. Compliant with rigorous industry quality standards, it achieves a balance of durability and usability, making it a trusted choice for critical operations requiring long-term stability, strong adaptability, and high operational efficiency.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 2x4 |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Copper AlloyPolycarbonate |
| Insert surface treatment | Nickel-plated |
| Inserts color | RAL 7032 (light gray) |
| Contact material | Copper alloy |
| Surface treatment | Silver-platedGold-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-0.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Bayonet range | 5-12mm |
| Stripping length | 8mm |
| Standard | DIN EN 60 664DIN EN 61 984 |
