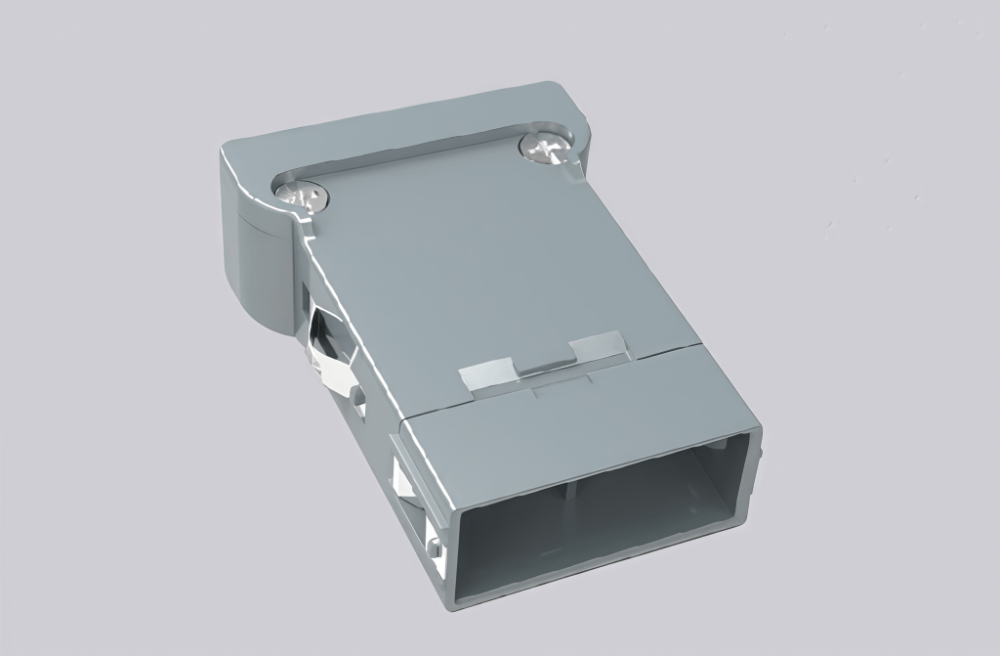

The HMMB-008-MC is a rugged industrial connector engineered for uncompromised performance in harsh industrial environments. Constructed with a corrosion-resistant reinforced housing and gold-plated precision contacts, it delivers exceptional durability—withstanding vibration, impact, and extreme temperatures (-40°C to +125°C) while maintaining long-term structural integrity.
Boasting low contact resistance and stable signal/power transmission, it meets IP67 waterproof/dustproof standards, making it ideal for industrial automation, robotics, renewable energy systems, and heavy-duty machinery. Its tool-free quick-locking mechanism enables effortless installation and maintenance, reducing downtime and operational costs.
Compatible with multiple wire gauges, this connector balances robust reliability, superior electrical performance, and user-centric design, providing a dependable connectivity solution for critical applications requiring resilience in demanding conditions.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 2×4+shield |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Bayonet range | 5-12 mm |
| Standard | DIN EN 60664, DIN EN 61984 |
