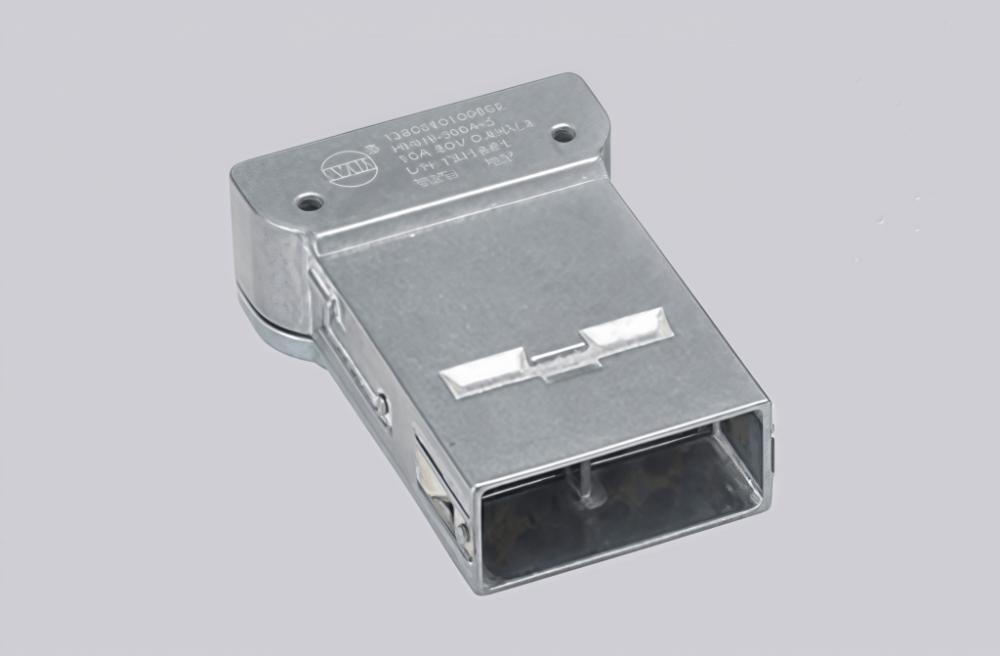

The HMMB-008-MC 3SP is a rugged industrial connector engineered for exceptional durability and stable performance in harsh operating conditions. With an IP67-rated (protection against dust and moisture), it endures extreme temperatures (-40°C to +125°C), heavy vibration, and chemical corrosion, ensuring reliable power and signal transmission.
Featuring 8 high-quality contacts rated for 16A/500V AC/DC, the connector delivers consistent signal integrity and efficient power distribution. Its robust construction with corrosion-resistant alloy and flame-retardant materials meets UL, IEC, and RoHS standards, guaranteeing long service life. The secure quick-locking mechanism enables tool-free installation, enhancing operational efficiency.
Ideal for industrial automation, robotics, renewable energy systems, and heavy-duty machinery, it adapts seamlessly to diverse application scenarios, making it a trusted choice for critical connectivity needs.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 2×4+shield |
| Rated current | 10A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Bayonet range | 5-12 mm |
| Standard | DIN EN 60664, DIN EN 61984 |
