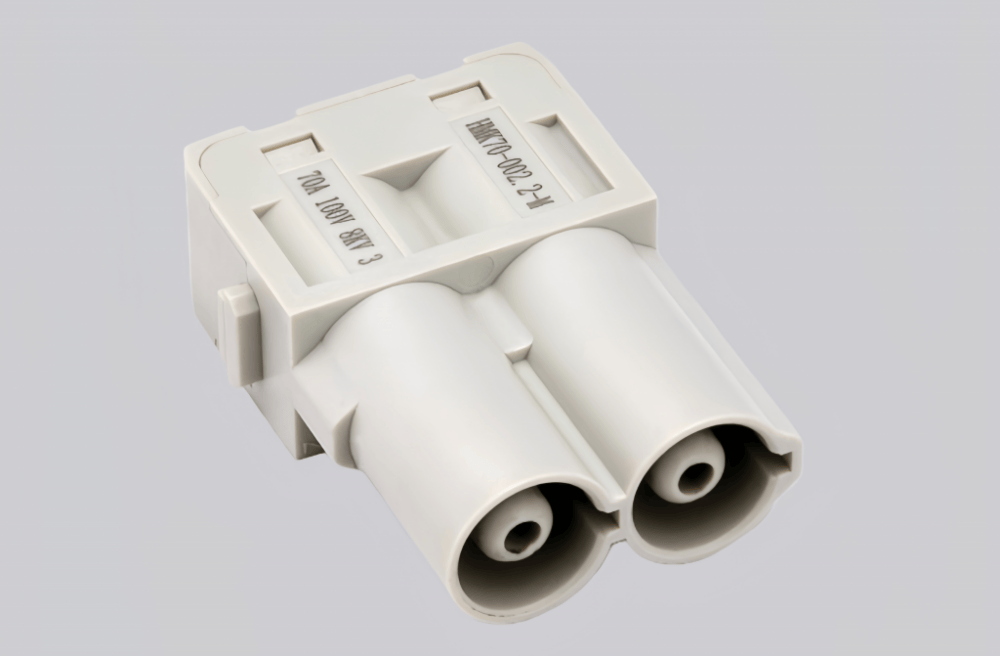

The HMK70-002.1-M (6-16MM²) is a high-performance industrial connector designed for reliable power and signal transmission, accommodating 6-16mm² cables for versatile wiring needs. Featuring an IP67 protection rating, it provides robust defense against dust ingress and water immersion, ensuring consistent performance in harsh industrial environments. Its rugged metal housing and gold-plated contacts are precision-engineered to resist corrosion and minimize contact resistance (<50mΩ), guaranteeing long-term stability.
With a current rating of 35A and voltage rating of 690V AC/DC, this connector meets the power demands of heavy-duty industrial systems while maintaining superior signal integrity. It operates seamlessly across an extreme temperature range of -40°C to +105°C and withstands vibration, mechanical shock, and chemical exposure, making it ideal for demanding applications.
Compatible with standard industry interfaces, it supports tool-free quick mating for efficient installation and maintenance. Suitable for industrial automation, machinery, power distribution, and renewable energy systems, it integrates durability, cable versatility, and reliable performance to fulfill stringent industrial requirements.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Axial bolt connection |
| Male/female | Male |
| Number of connector contacts | 2 |
| Rated current | 70A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 0.5mΩ |
| Wire gauge (mm²) | 6-22mm² |
| Wire gauge (AWG) | 8-4 AWG |
| Tightening/testing torque | 6mm²→2Nm; 10mm²→3Nm; 16mm²→4Nm |
| Stripping length | 6mm²→11⁺¹mm; 10mm²→11⁺¹mm; 16mm²→11⁺¹mm |
| Standard | DIN EN 60664; DIN EN 61984 |
