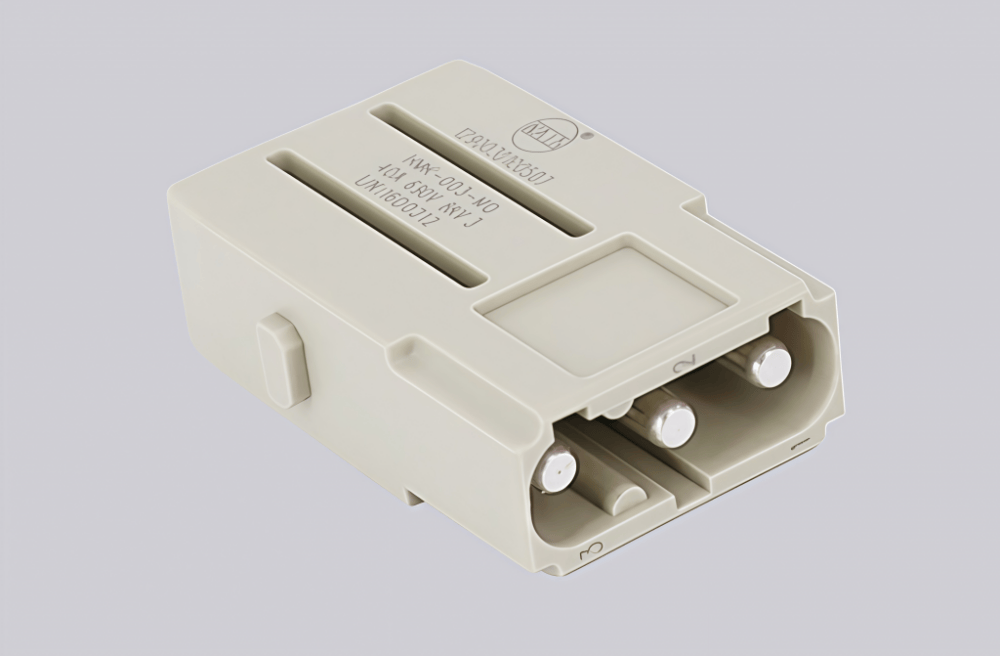

The HMK-003-MQ industrial connector is a compact, high-efficiency component designed for reliable signal and low-power transmission in harsh industrial environments. It features a sturdy die-cast zinc housing with IP67 ingress protection, effectively shielding against dust, splashing water, and temperature fluctuations ranging from -40°C to 120°C.
Equipped with 3 gold-plated contacts, it ensures minimal contact resistance (<18mΩ) and long-term conductivity, complying with the IEC 61076-2-101 standard. Rated at 8A and 250V AC/DC, it suits light-duty automation, sensor networks, and control systems.
Its twist-lock mechanism enables tool-free, secure mating in seconds, reducing installation time and operational downtime. Compact, durable, and cost-effective, the HMK-003-MQ is a trusted choice for space-constrained industrial applications.
Technical Data
| Material Insert | Polycarbonate |
| Standard | DIN EN 60 664; DIN EN 61 984 |
| Wire Gauge AWG | 16-10 AWG |
| Wire Gauge mm² | 1.5-6 mm² |
| Contact Resistance | ≤3 mΩ |
| Surface Treatment | Silver-plated |
| Material Contacts | Copper alloy |
| Flame Retardant Rating (UL94) | V0 |
| Color Insert | RAL 7032 (light gray) |
| Series | HM modular insert series |
| Mating Cycles | ≥500 |
| Limiting Temperature | -40℃...+125℃ |
| Insulation Resistance | ≥10¹⁰ Ω |
| Pollution Degree | 3 |
| Rated Impulse Voltage | 8 kV |
| Rated Voltage | 690 V |
| Rated Current | 40 A |
| Number of Contacts | 3 |
| Male/Female | Male |
| Connection Type | Spring connection (quick connection) |
| Size of the Module | Single module |
