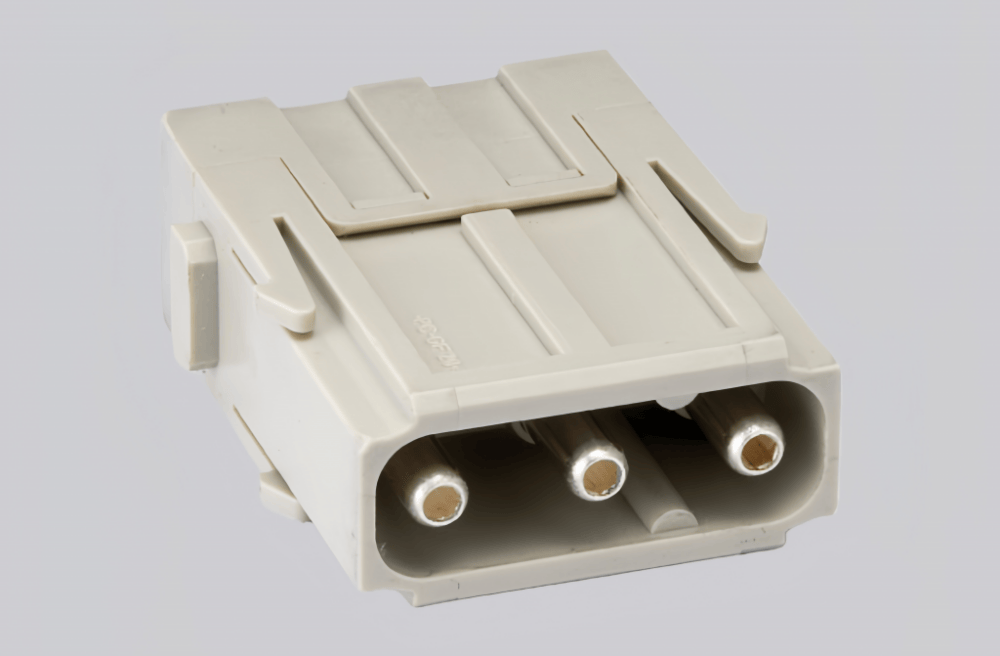

The HMK-003.2-M is a rugged industrial connector exclusively designed for 6-10mm² cross-sectional area cables, built with enhanced durability to thrive in harsh industrial settings. Its heavy-duty construction resists corrosion, vibration, and mechanical impact, ensuring long-term structural integrity even under extreme conditions.
Optimized for seamless cable compatibility, the connector features precision-engineered contacts and a tool-free mating design, enabling quick, error-proof installation while minimizing downtime. It adheres to global electrical safety standards (e.g., IEC/UL), guaranteeing compliance and operational safety in critical systems.
Ideal for power distribution, industrial automation, renewable energy infrastructure, and heavy machinery, this connector delivers reliable power transmission and signal stability. It offers a cost-effective, low-maintenance solution for applications demanding uncompromised performance and regulatory compliance.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Axial bolt connection |
| Male/female | Male |
| Number of connector contacts | 3 |
| Rated current | 40A |
| Rated voltage | 690V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 1mΩ |
| Wire gauge (mm²) | 6-10mm² |
| Wire gauge (AWG) | 10-8 AWG |
| Tightening/testing torque | 6mm²→2Nm10mm²→2Nm |
| Stripping length | 6mm²→8⁺¹mm10mm²→11⁺¹mm |
| Standard | DIN EN 60664DIN EN 61984 |
