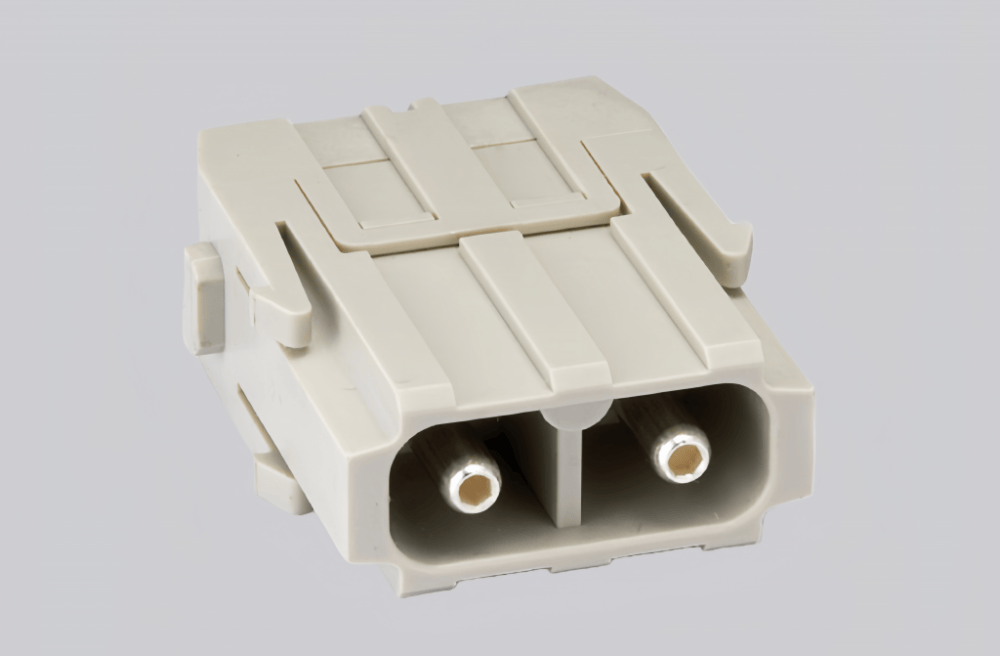

The HMK-002.2-M is a rugged industrial connector specifically designed for cables with a cross-sectional area of 6-10mm², catering to medium-to-high power transmission needs. It delivers exceptional current-carrying capability and stable signal integrity, ensuring consistent performance in rigorous industrial environments.
Constructed with high-grade flame-retardant materials and gold-plated copper alloy contacts, the connector boasts superior corrosion resistance, mechanical durability, and anti-vibration properties. Its precision-machined mating structure guarantees secure connections, minimizing downtime and reducing maintenance requirements.
Compliant with international electrical safety standards, this connector is ideal for industrial automation, power distribution, renewable energy systems, and heavy-duty machinery. It offers a reliable, low-maintenance solution for critical applications demanding long-term operational stability.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Axial bolt connection |
| Male/female | Male |
| Number of connector contacts | 2 |
| Rated current | 40A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 1mΩ |
| Wire gauge (mm²) | 6-10mm² |
| Tightening/testing torque | 6mm²→2Nm10mm²→2Nm |
| Stripping length | 6mm²→8⁺¹mm10mm²→11⁺¹mm |
| Standard | DIN EN 60664DIN EN 61984 |
