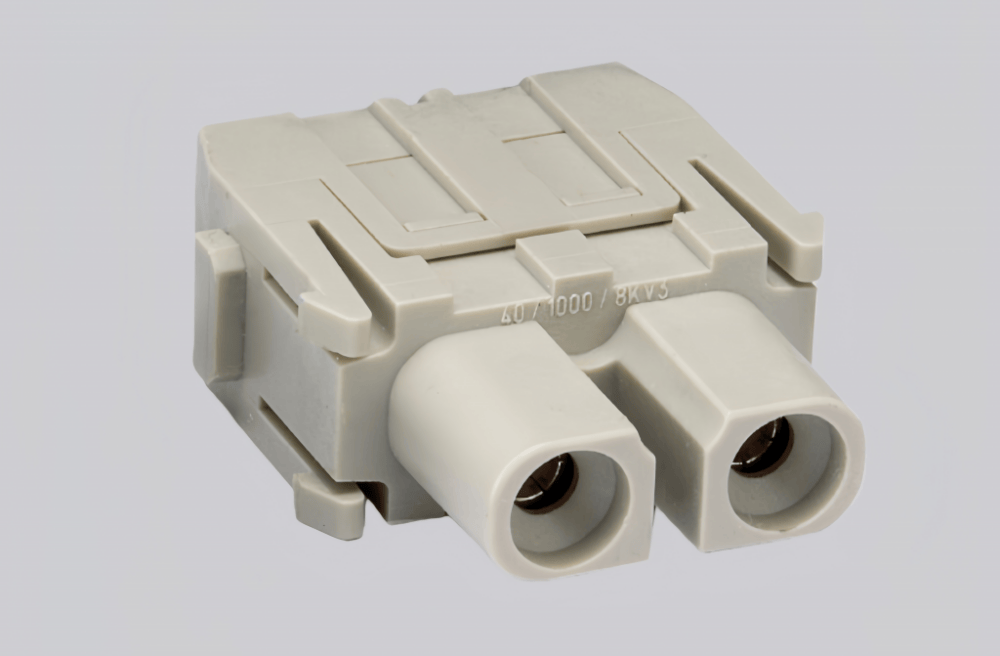

The HMK-002.2-F is a rugged industrial connector optimized for cables with a 6-10mm² cross-sectional area, engineered to deliver consistent performance in harsh operating conditions. It excels in power transmission and signal integrity, ensuring uninterrupted operation in critical industrial setups.
Constructed with flame-retardant, high-strength housing and corrosion-resistant copper alloy contacts, the connector offers exceptional durability, vibration resistance, and mechanical stability. Its precision design enables secure, tool-free mating, simplifying installation while preventing accidental disconnection.
Compliant with international electrical safety standards, this connector is ideal for power distribution systems, industrial automation, renewable energy equipment, and heavy-duty machinery. It provides a reliable, low-maintenance solution for applications requiring long-term operational efficiency and structural longevity.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Axial bolt connection |
| Male/female | Female |
| Number of connector contacts | 2 |
| Rated current | 40A |
| Rated voltage | 1000V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | 1mΩ |
| Wire gauge (mm²) | 6-10mm² |
| Tightening/testing torque | 6mm²→2Nm10mm²→2Nm |
| Stripping length | 6mm²→8⁺¹mm10mm²→11⁺¹mm |
| Standard | DIN EN 60664DIN EN 61984 |
