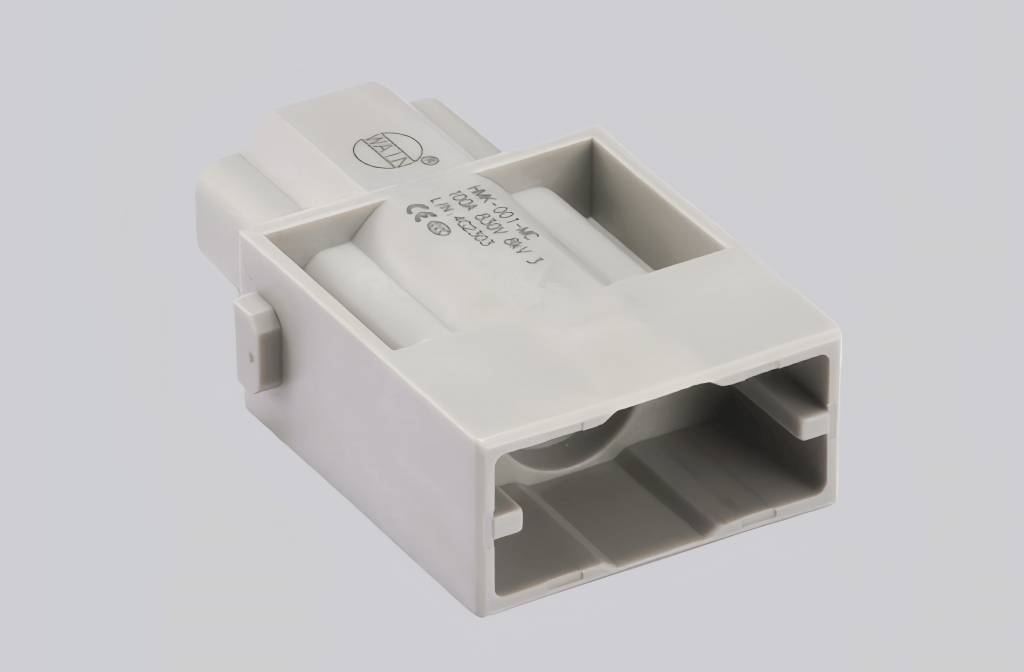

The HMK-001-MC is a high-reliability industrial connector tailored for critical signal and power transmission in harsh environments. Constructed with rugged materials, it delivers consistent performance across industrial automation, heavy-duty machinery, and outdoor instrumentation, withstanding extreme temperatures (-40°C to 130°C), vibration, and chemical exposure.
Featuring IP67 dustproof and waterproof protection, the connector is equipped with a secure locking mechanism to prevent accidental disconnection. Its gold-plated contacts ensure minimal signal loss and strong corrosion resistance, extending service life and reducing maintenance costs. It complies with international industrial standards for seamless integration into existing systems.
This cost-effective solution meets the demands of mission-critical applications requiring uninterrupted connectivity. Trusted for its durability and stability, it is an ideal choice for demanding industrial scenarios.

Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 1 |
| Rated current | 100A |
| Rated voltage | 830V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤0.3mΩ |
| Wire gauge (mm²) | 10-35mm² |
| Maximum cable diameter | 13mm |
| Stripping length | 16-19mm |
| Standard | DIN EN 60664; DIN EN 61984 |
