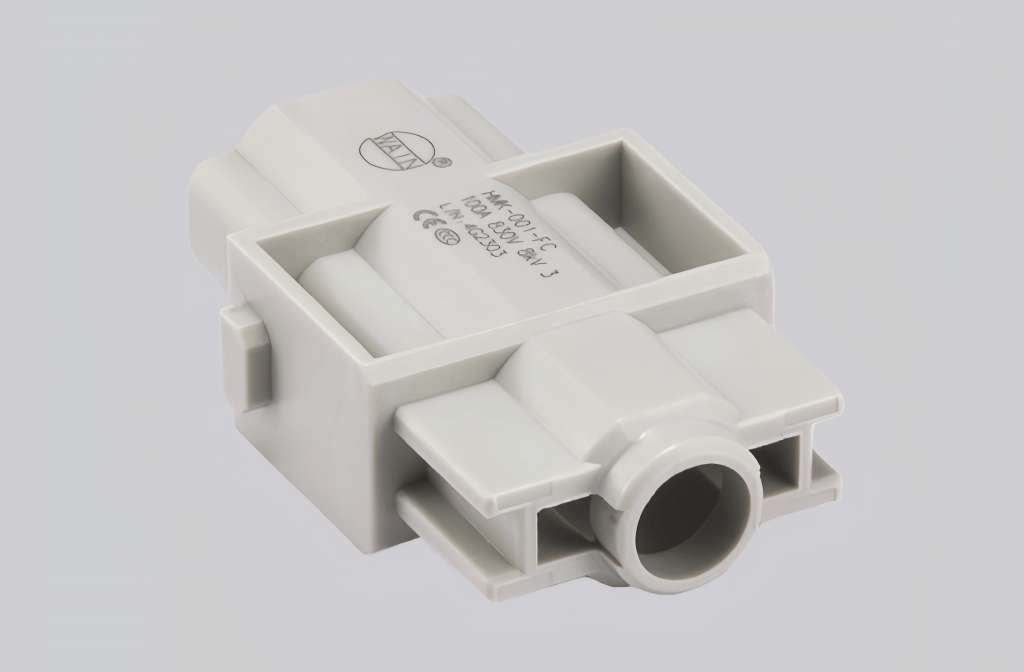

The HMK-001-FC is a rugged industrial connector designed for reliable signal and power transmission in harsh operating conditions. Built with robust materials, it excels in industrial automation, outdoor instrumentation, and heavy-duty equipment, maintaining stable performance amid extreme temperatures (-40°C to 130°C), moisture, and mechanical stress.
Equipped with IP68 waterproof/dustproof protection and a secure locking mechanism, it prevents accidental disconnection and ensures long-term durability. Gold-plated contacts reduce signal attenuation and corrosion, while its compact design enables easy integration into existing systems, complying with global industrial standards.
Ideal for mission-critical applications requiring uninterrupted connectivity, the HMK-001-FC balances reliability and cost-efficiency.

Technical Data
| Series | HM modular insert series |
| Module size | Dual module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 1 |
| Rated current | 100A |
| Rated voltage | 830V |
| Rated pulse voltage | 8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤0.3mΩ |
| Wire gauge (mm²) | 10-35mm² |
| Maximum cable diameter | 13mm |
| Stripping length | 16-19mm |
| Standard | DIN EN 60664; DIN EN 61984 |
