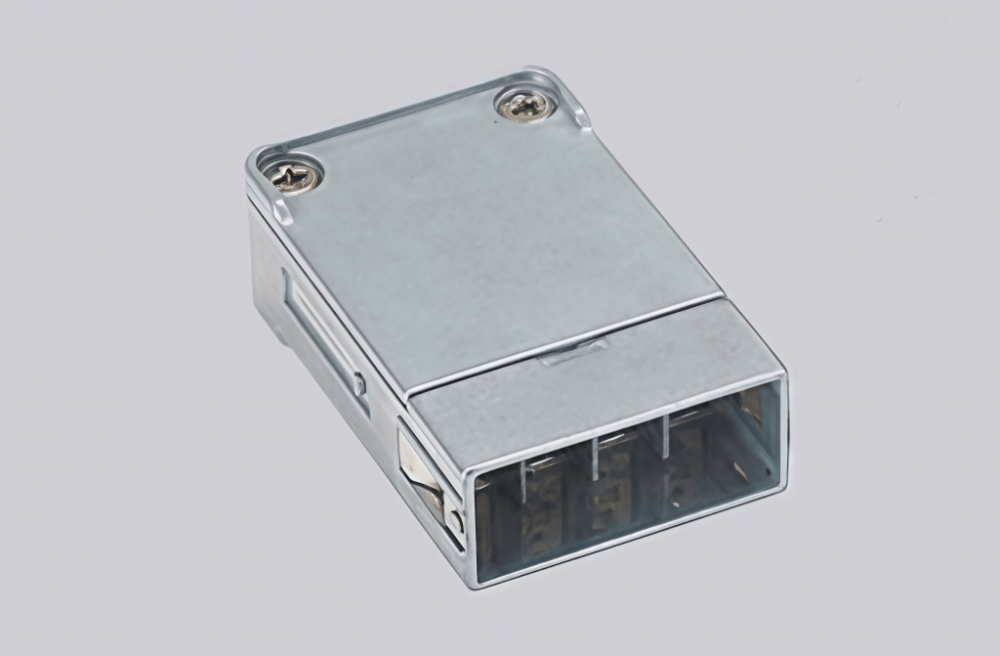

The HMGB-008-MC 3SP is a rugged industrial connector engineered for exceptional durability and reliable signal transmission in harsh operating environments. With IP67 dustproof and waterproof protection, it withstands extreme temperatures (-40°C to +125°C), heavy vibration, and chemical corrosion, ensuring long-term structural integrity.
Equipped with 8 high-precision contacts rated for 16A/500V AC/DC, it delivers stable signal transmission with minimal interference, supporting consistent power distribution. Constructed from corrosion-resistant alloy and flame-retardant materials, it complies with UL, IEC, and RoHS standards, guaranteeing operational safety. The tool-free quick-locking mechanism enables efficient installation and maintenance.
Ideal for industrial automation, robotics, renewable energy systems, and heavy-duty machinery, it meets the rigorous connectivity needs of demanding industrial scenarios.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Male |
| Number of connector contacts | 8+shield |
| Rated current | 5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.09-0.52mm² |
| Wire gauge (AWG) | 26-20 AWG |
| Bayonet range | 5-12 mm |
| Standard | DIN EN 60664, DIN EN 61984 |
