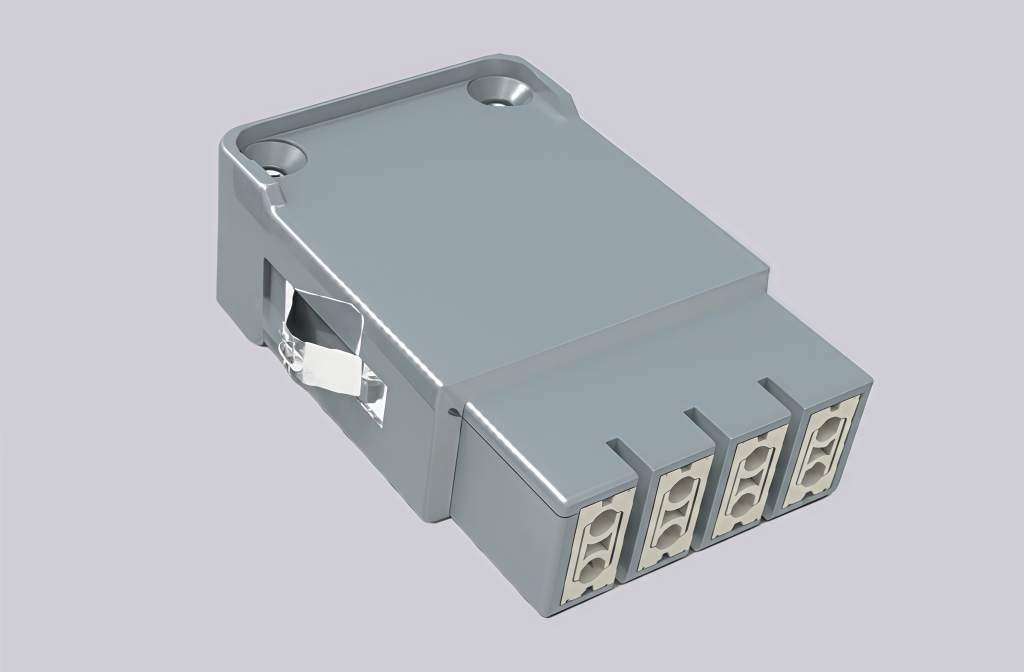

The HMGB-008-FC is a precision-engineered industrial connector tailored for critical power and signal transmission in demanding scenarios. It excels in industrial automation lines, factory control systems, renewable energy equipment, and heavy-duty machinery, delivering consistent performance in environments with high humidity, dust, or mechanical stress.
Featuring a robust corrosion-resistant housing and gold-plated contacts, the connector ensures low contact resistance and strong anti-vibration capabilities. Compliant with IP67 protection standards, it provides reliable waterproof and dustproof performance, while its ergonomic structural design enables secure mating and stable connection even in tight installation spaces.
With tool-free quick-locking technology, the connector simplifies assembly and maintenance, reducing downtime and operational costs. Its wide operating temperature range (-40°C to +125°C) and compatibility with various wire gauges enhance versatility, making it a cost-effective and reliable choice for industrial applications requiring long-term durability and efficient connectivity.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 8+shield |
| Rated current | 5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.09-0.52mm² |
| Wire gauge (AWG) | 26-20 AWG |
| Bayonet range | 5-12 mm |
| Standard | DIN EN 60664, DIN EN 61984 |
