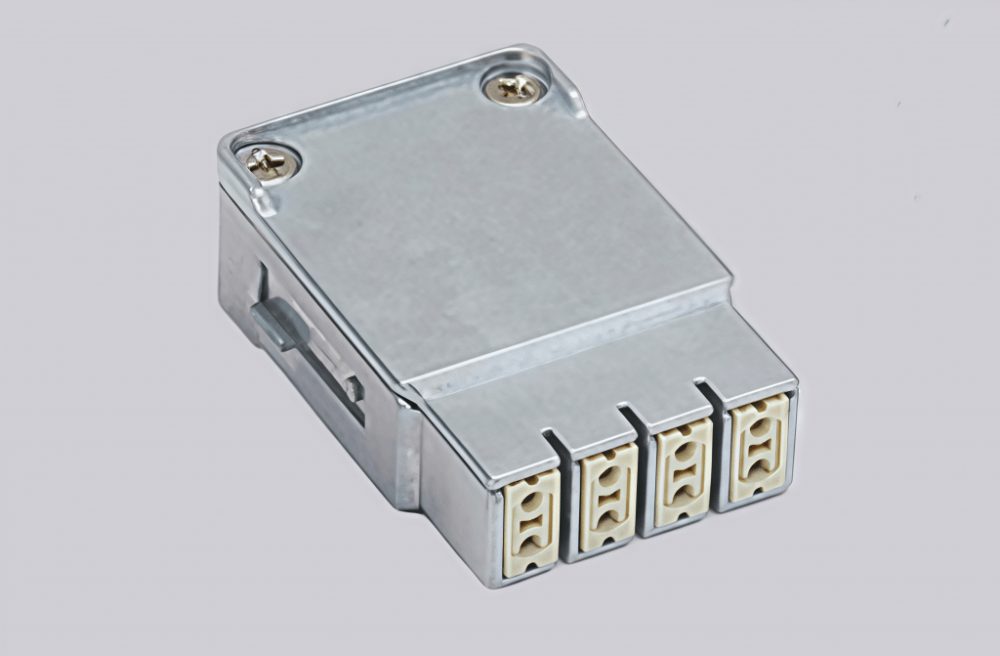

he HMGB-008-FC 3SP is a high-performance industrial connector built for uncompromising reliability and durability in harsh operating conditions. With IP67 dustproof and waterproof protection, it endures extreme temperatures (-40°C to +125°C), heavy vibration, and chemical corrosion, ensuring uninterrupted power and signal transmission.
Equipped with 8 precision contacts rated for 16A/500V AC/DC, it delivers stable performance with minimal interference. Crafted from corrosion-resistant alloy and flame-retardant materials, it meets UL, IEC, and RoHS standards, guaranteeing long service life. The tool-free quick-locking mechanism enables effortless installation, enhancing efficiency.
Ideal for industrial automation, robotics, renewable energy systems, and heavy-duty machinery, it excels in demanding scenarios requiring robust connectivity.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Crimp connection |
| Male/female | Female |
| Number of connector contacts | 8+shield |
| Rated current | 5A |
| Rated voltage | 50V |
| Rated pulse voltage | 0.8KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+85℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Zinc alloy |
| Surface treatment | Gold-plated |
| Contact resistance | ≤4mΩ |
| Wire gauge (mm²) | 0.09-0.52mm² |
| Wire gauge (AWG) | 26-20 AWG |
| Bayonet range | 5-12 mm |
| Standard | DIN EN 60664, DIN EN 61984 |
