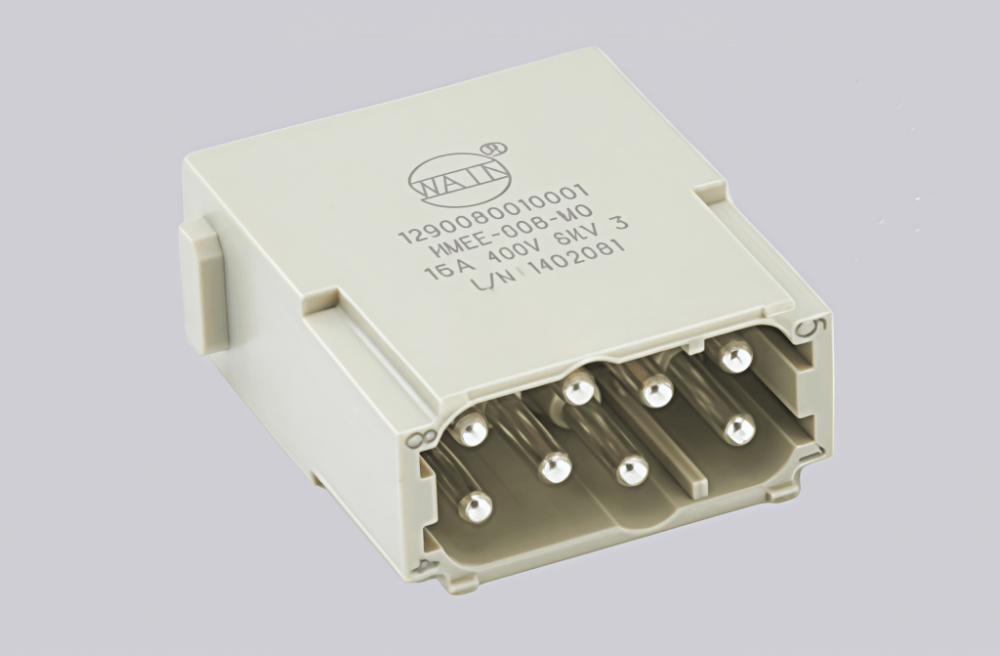

The HMEE-008-MQ is a premium industrial connector engineered for high-reliability signal and power transmission in demanding operating conditions. Boasting an IP68 protection rating, it delivers superior resistance to dust, water immersion, and harsh chemicals, paired with a wide operating temperature range of -40°C to 125°C for consistent performance in extreme environments.
Equipped with 8 gold-plated pins, it features low contact resistance (<5mΩ) and excellent anti-corrosion properties, ensuring efficient data transfer and stable power supply for critical industrial equipment. Its secure thread-locking mechanism enables easy yet firm installation, while compatibility with industry-standard interfaces facilitates seamless integration into automation, energy, and transportation systems.
Ideal for indoor and outdoor applications including factory automation, renewable energy plants, and heavy-duty machinery, this connector combines rugged durability, precision performance, and versatile adaptability to meet the stringent requirements of mission-critical industrial operations.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection (quick connection) |
| Male/female | Male |
| Number of connector contacts | 8 |
| Rated current | 16A |
| Rated voltage | 400V |
| Rated pulse voltage | 6kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm²；0.5-4mm² |
| Wire gauge (AWG) | 26-14 AWG；20-12 AWG |
| Stripping length | 10±0.5mm |
| Standard | DIN EN 60664DIN EN 61984 |
