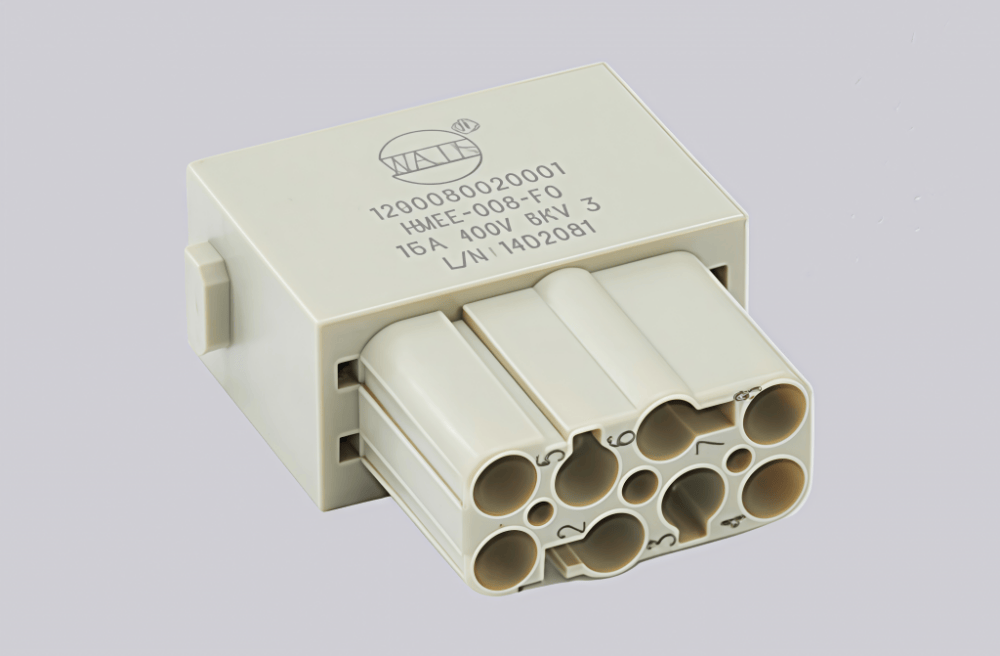

The HMEE-008-FQ is a high-end industrial connector specifically engineered for reliable signal and power transmission under harsh operating conditions. Featuring an IP68 protection rating, it offers exceptional resistance to dust, water immersion, and corrosive chemicals. Paired with a wide operating temperature range of -40°C to 125°C, it ensures continuous and stable performance in extreme environments.
Equipped with 8 gold-plated pins, the connector delivers low contact resistance (<5mΩ) and outstanding anti-corrosion performance, providing efficient data transfer and stable power supply for critical industrial equipment. Its reliable thread-locking mechanism enables convenient yet secure installation, while compatibility with industry-standard interfaces allows seamless integration into automation, energy, and transportation systems.
Suitable for indoor and outdoor applications such as factory automation, renewable energy plants, and heavy-duty machinery, this connector combines rugged durability, precise performance, and flexible adaptability to meet the stringent requirements of mission-critical industrial operations.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection (quick connection) |
| Male/female | Female |
| Number of connector contacts | 8 |
| Rated current | 16A |
| Rated voltage | 400V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm²;0.5-4mm² |
| Wire gauge (AWG) | 26-14 AWG;20-12 AWG |
| Stripping length | 10±0.5mm |
| Standard | DIN EN 60664DIN EN 61984 |
