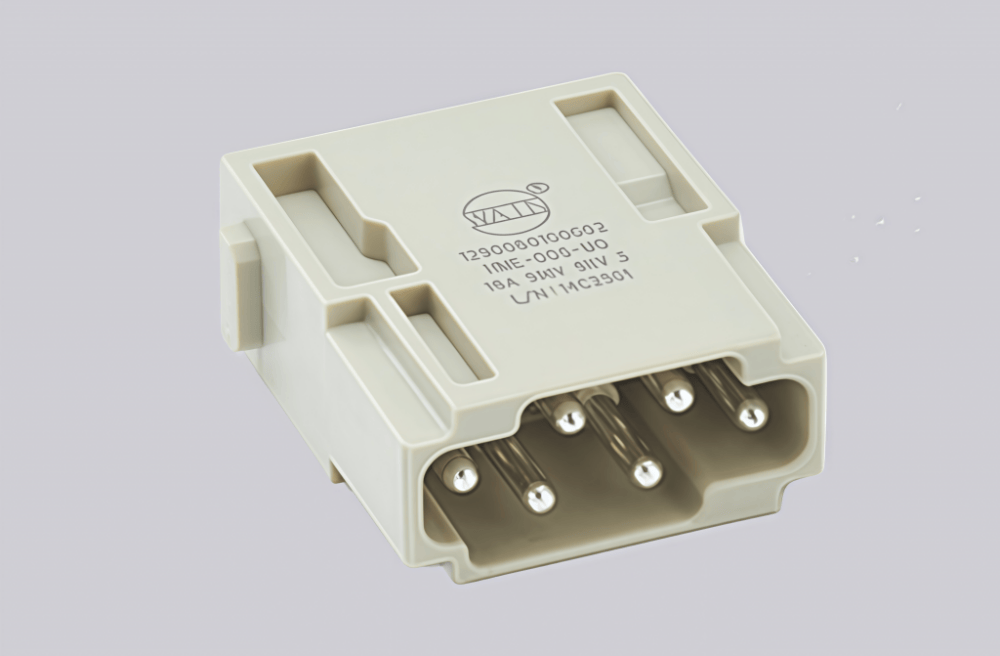

HME-006-MQ is a high-performance industrial component engineered for exceptional reliability and consistent functionality in demanding operational environments. Crafted from premium-grade materials, it delivers superior structural integrity, outstanding corrosion resistance, and excellent wear resistance, ensuring stable performance under harsh conditions involving intense friction, chemical exposure, or extreme temperature fluctuations. Featuring precision-machined dimensions and optimized functional design, this component enables seamless integration with existing systems while meeting specialized industrial application requirements. Suitable for machinery manufacturing, industrial automation, aerospace, and marine engineering sectors, it maintains steady operation while minimizing maintenance needs and operational costs. Compliant with stringent industry quality standards, it balances robust durability and practical utility, making it a dependable choice for critical operations demanding long-term stability, strong adaptability, and high operational efficiency.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection (quick connection) |
| Male/female | Female |
| Number of connector contacts | 6 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.5-4mm² |
| Wire gauge (AWG) | 20-12 AWG |
| Stripping length | 10±0.5mm |
| Standard | DIN EN 60664DIN EN 61984 |
