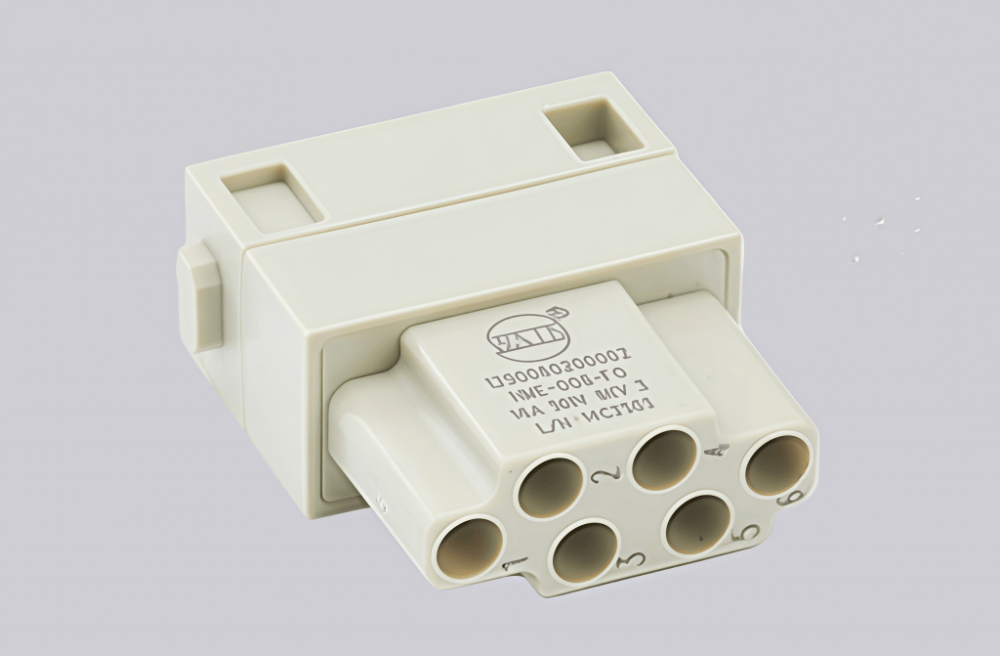

The HME-006-FQ is a high-performance industrial connector specifically engineered for reliable signal and power transmission in harsh environments. Boasting a rugged, corrosion-resistant housing and IP67-rated sealing, it can withstand extreme temperatures ranging from -40°C to 105°C, as well as vibration and moisture, ensuring uninterrupted operation in sectors such as manufacturing, automation, energy, and transportation.
Featuring a 6-pin configuration and gold-plated contacts, the connector delivers low contact resistance and excellent conductivity, providing stable data transfer and power supply for critical equipment. Its quick-lock mechanism enables tool-free and secure installation, significantly reducing maintenance time and operational costs. Additionally, it is compatible with standard industry interfaces, allowing seamless integration with existing systems.
Suitable for various indoor and outdoor applications, this product combines durability, efficiency, and versatility to meet the rigorous requirements of industrial automation. The HME-006-FQ is a trustworthy performance guarantee for mission-critical operations.
Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection (quick connection) |
| Male/female | Female |
| Number of connector contacts | 6 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated pulse voltage | 6KV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.5-4mm² |
| Wire gauge (AWG) | 20-12 AWG |
| Stripping length | 10±0.5mm |
| Standard | DIN EN 60664DIN EN 61984 |
