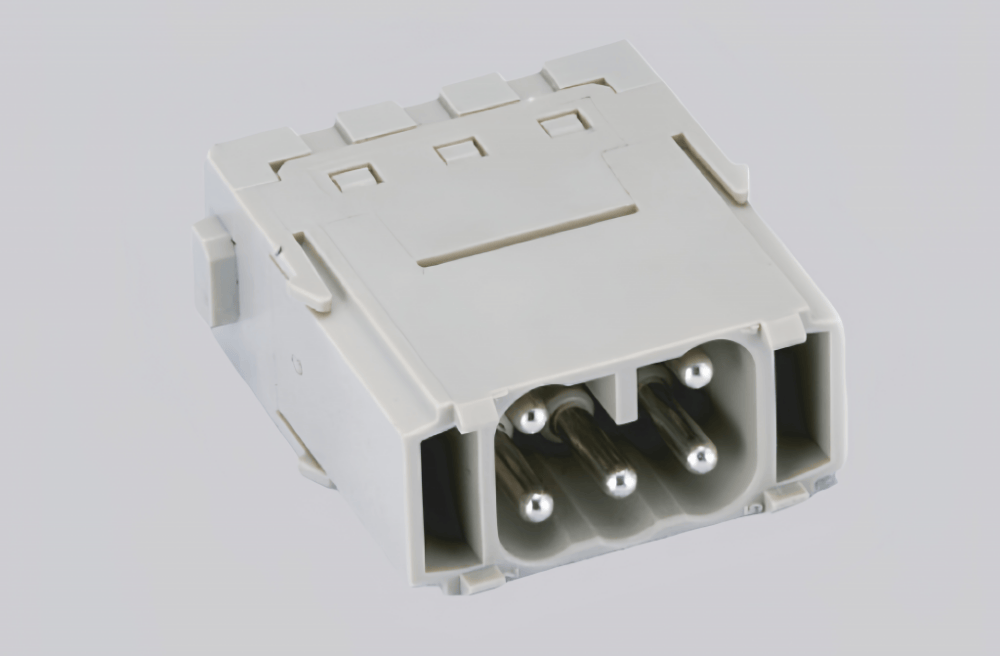

The HME-005-MS is a high-reliability industrial connector engineered for seamless signal and power transmission in harsh operating environments. Featuring an IP67 protection rating, it provides robust defense against dust ingress and water immersion, ensuring consistent performance in challenging industrial conditions. Its ruggedized construction with a durable metal housing and gold-plated contacts minimizes contact resistance (<50mΩ) and enhances corrosion resistance, delivering long-term operational stability.
With a current rating of 20A and voltage rating of 600V AC/DC, this connector meets the high-power demands of industrial systems while maintaining precise signal integrity. It operates reliably across an extreme temperature range of -40°C to +125°C and withstands vibration, shock, and chemical exposure, making it suitable for rigorous industrial applications.
Compatible with standard industry interfaces, the HME-005-MS supports tool-free quick mating for efficient installation and maintenance. Ideal for automation, robotics, renewable energy, and heavy machinery, it combines durability, versatility, and high-performance to meet the stringent requirements of industrial IoT and mission-critical systems.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection |
| Male/female | Male |
| Number of connector contacts | 5 |
| Rated current | 16A |
| Rated voltage | 400V |
| Rated pulse voltage | 6kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60664, DIN EN 61984 |
