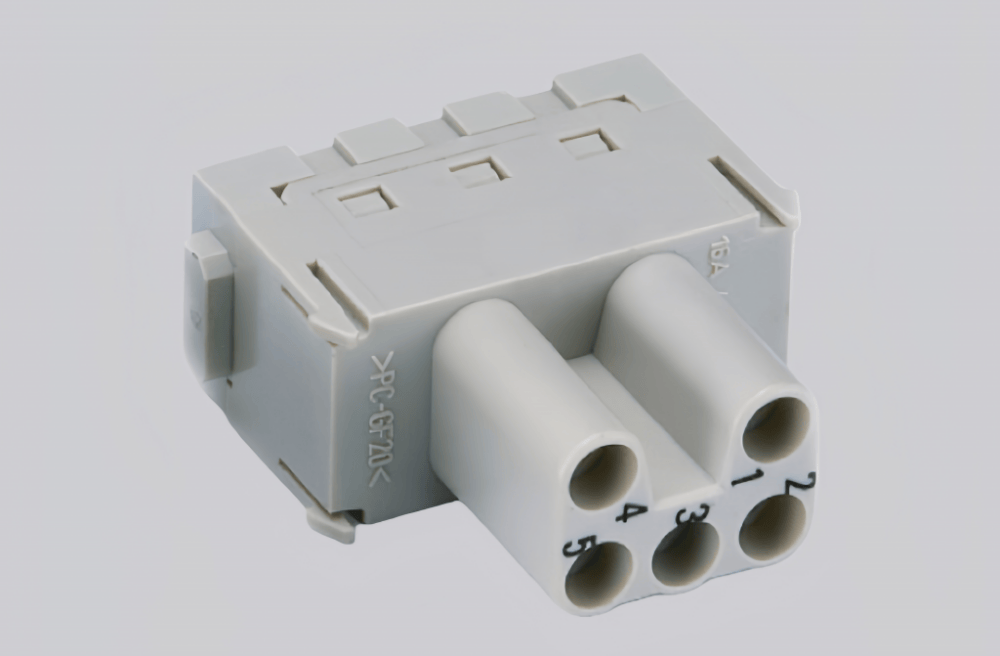

The HME-005-FS is a high-performance industrial connector designed for reliable signal and power transmission in harsh operating environments. Boasting an IP67 protection rating, it delivers robust defense against dust ingress and water immersion, ensuring uncompromised operational integrity in challenging industrial settings. Its rugged metal housing and gold-plated contacts are precision-engineered to resist corrosion and minimize contact resistance (<50mΩ), guaranteeing long-term stability and consistent performance.
With a current rating of 20A and voltage rating of 600V AC/DC, this connector meets the high-power demands of heavy-duty industrial systems while maintaining exceptional signal integrity. It operates seamlessly across an extreme temperature range of -40°C to +125°C and can withstand vibration, shock, and chemical exposure, making it ideal for rigorous and mission-critical applications.
Compatible with standard industry interfaces, the HME-005-FS supports tool-free quick mating for efficient installation and maintenance. Suitable for automation, robotics, renewable energy, and heavy machinery, it integrates durability, versatility, and high reliability to fulfill the stringent requirements of industrial IoT and high-stress industrial systems.

Technical Data
| Series | HM modular insert series |
| Module size | Single module |
| Connection type | Spring connection |
| Male/female | Female |
| Number of connector contacts | 5 |
| Rated current | 16A |
| Rated voltage | 400V |
| Rated pulse voltage | 6kV |
| Class of pollution | 3 |
| Insulation resistance | ≥10¹⁰Ω |
| Working temperature | -40℃...+125℃ |
| Mating cycles | ≥500 |
| Inserts material | Polycarbonate |
| Inserts color | RAL 7032 (light gray) |
| Flame retardant rating as per UL94 | V0 |
| Contact material | Copper alloy |
| Surface treatment | Silver-plated |
| Contact resistance | ≤3mΩ |
| Wire gauge (mm²) | 0.14-2.5mm² |
| Wire gauge (AWG) | 26-14 AWG |
| Stripping length | 7-9mm |
| Standard | DIN EN 60664, DIN EN 61984 |
